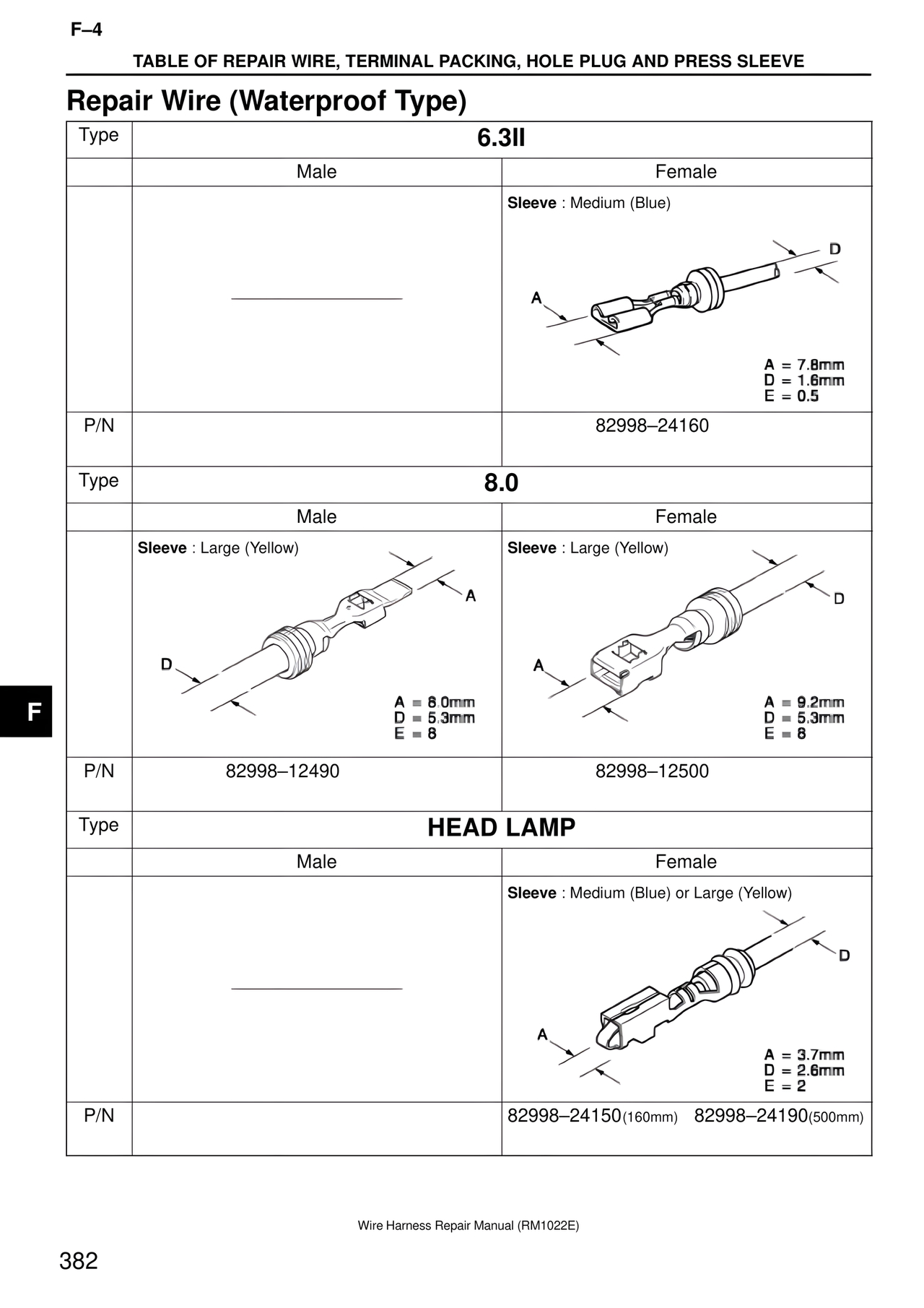

F–4 TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE Repair Wire (Waterproof Type) Type 6.3II Male Female Sleeve : Medium (Blue) A D A = 7.8mm D = 1.6mm E = 0.5 P/N 82998–24160 Type 8.0 Male Female Sleeve : Large (Yellow) Sleeve : Large (Yellow) A D D A A = 8.0mm A = 9.2mm D = 5.3mm D = 5.3mm E = 8 E = 8 P/N 82998–12490 82998–12500 Type HEAD LAMP Male Female Sleeve : Medium (Blue) or Large (Yellow) D A A = 3.7mm D = 2.6mm E = 2 P/N 82998–24150(160mm) 82998–24190(500mm) F Wire Harness Repair Manual (RM1022E) 382
