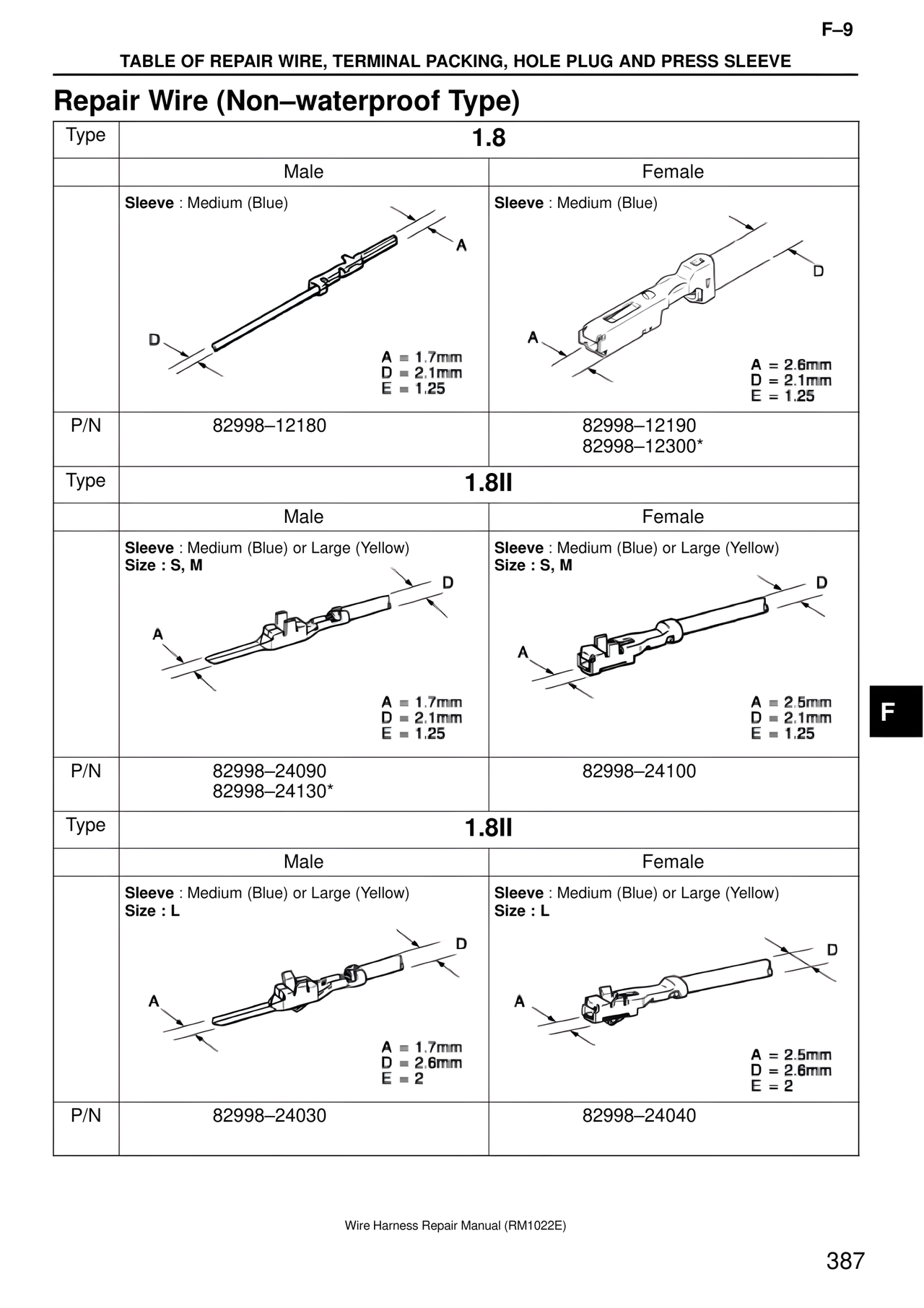

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE
Repair Wire (Non–waterproof Type)
Type 1.8
Male Female
Sleeve : Medium (Blue) Sleeve : Medium (Blue)
A
D
A = 1.7mm
D = 2.1mm
E = 1.25
A
D
A = 2.6mm
D = 2.1mm
E = 1.25
P/N 82998–12180 82998–12190
82998–12300*
Type 1.8II
Male Female
Sleeve : Medium (Blue) or Large (Yellow) Sleeve : Medium (Blue) or Large (Yellow)
Size : S, M Size : S, M
A
D
A = 1.7mm
D = 2.1mm
E = 1.25
A
D
A = 2.5mm
D = 2.1mm
E = 1.25
P/N 82998–24090
82998–24130* 82998–24100
Type 1.8II
Male Female
Sleeve : Medium (Blue) or Large (Yellow) Sleeve : Medium (Blue) or Large (Yellow)
Size : L Size : L
A
D
A = 1.7mm
D = 2.6mm
E = 2
A
D
A = 2.5mm
D = 2.6mm
E = 2
P/N 82998–24030 82998–24040
