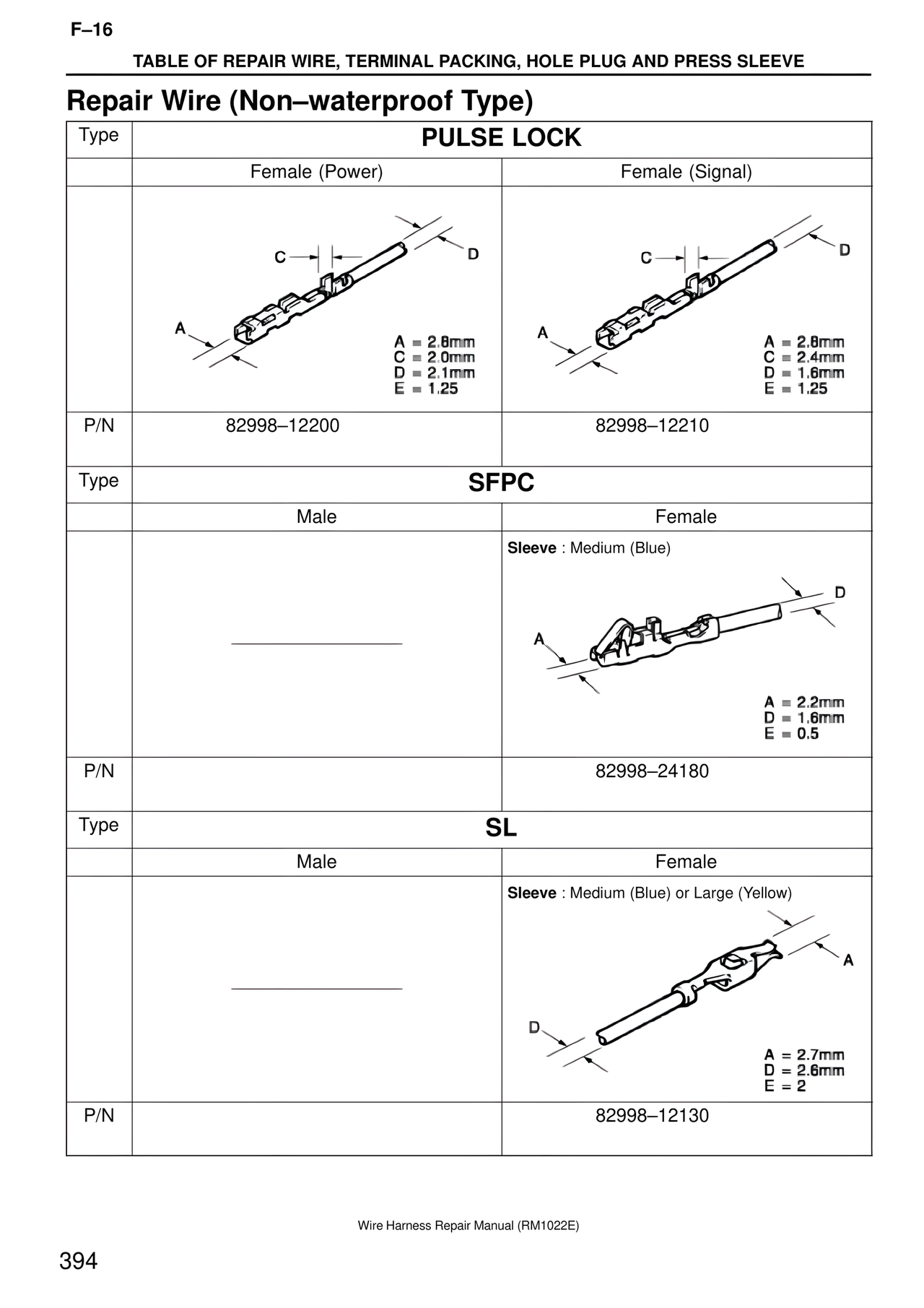

F–16 TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE Repair Wire (Non–waterproof Type) Type | PULSE LOCK Female (Power) | Female (Signal) C | D A A = 2.8mm C = 2.0mm D = 2.1mm E = 1.25 C | D A A = 2.8mm C = 2.4mm D = 1.6mm E = 1.25 P/N | 82998–12200 | 82998–12210 Type | SFPC Male | Female Sleeve : Medium (Blue) A | D A = 2.2mm D = 1.6mm E = 0.5 P/N | | 82998–24180 Type | SL Male | Female Sleeve : Medium (Blue) or Large (Yellow) A D A = 2.7mm D = 2.6mm E = 2 P/N | | 82998–12130 Wire Harness Repair Manual (RM1022E) 394
