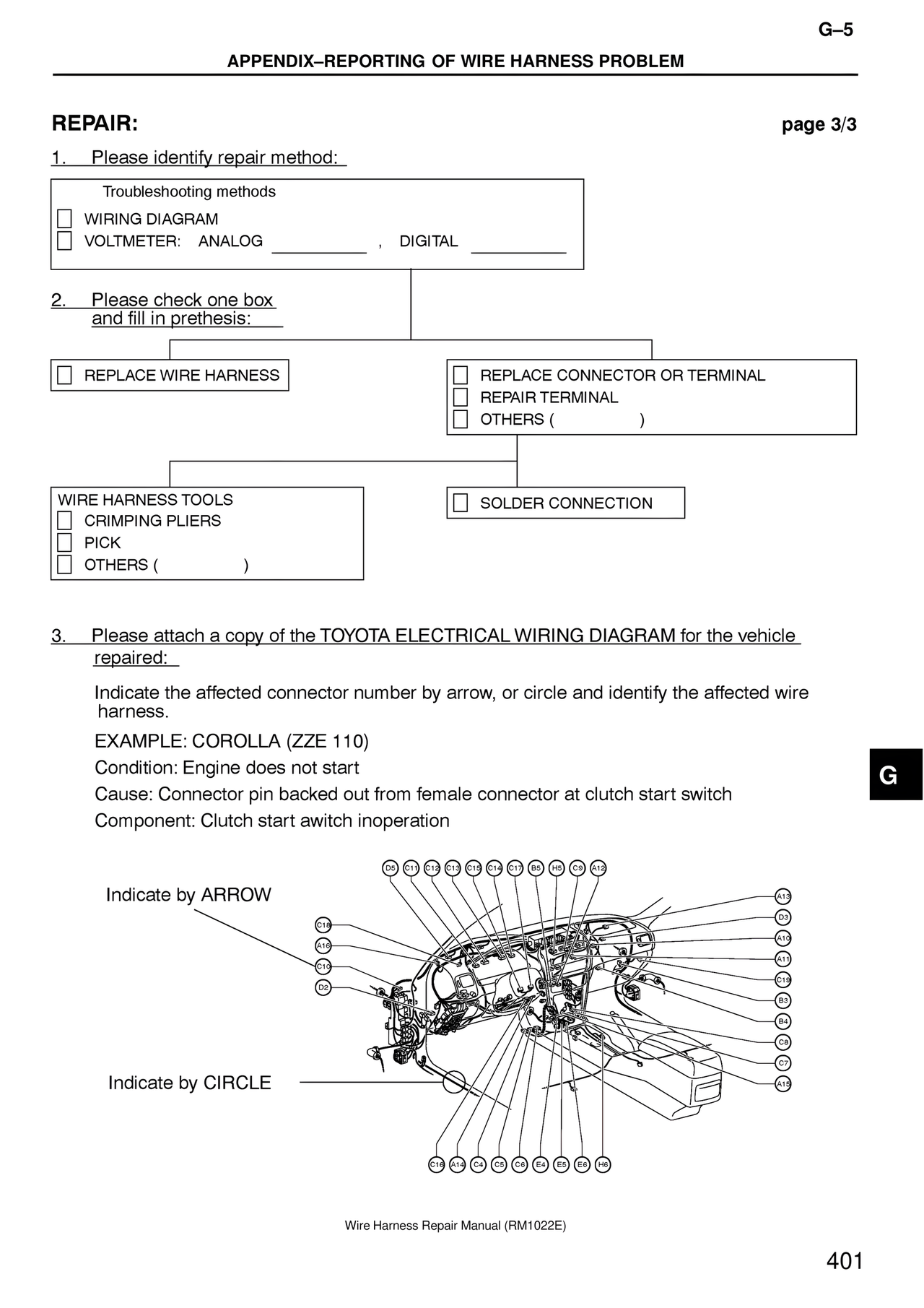

G–5
APPENDIX–REPORTING OF WIRE HARNESS PROBLEM
REPAIR:
page 3/3
1. Please identify repair method:
Troubleshooting methods
☐ WIRING DIAGRAM
☐ VOLTMETER: ANALOG __________ , DIGITAL __________
2. Please check one box
and fill in prethesis:
☐ REPLACE WIRE HARNESS
☐ REPLACE CONNECTOR OR TERMINAL
☐ REPAIR TERMINAL
☐ OTHERS ( )
WIRE HARNESS TOOLS
☐ CRIMPING PLIERS
☐ PICK
☐ OTHERS ( )
☐ SOLDER CONNECTION
3. Please attach a copy of the TOYOTA ELECTRICAL WIRING DIAGRAM for the vehicle repaired:
Indicate the affected connector number by arrow, or circle and identify the affected wire harness.
EXAMPLE: COROLLA (ZZE 110)
Condition: Engine does not start
Cause: Connector pin backed out from female connector at clutch start switch
Component: Clutch start awitch inoperation
Indicate by ARROW
Indicate by CIRCLE
G
Wire Harness Repair Manual (RM1022E)
401
