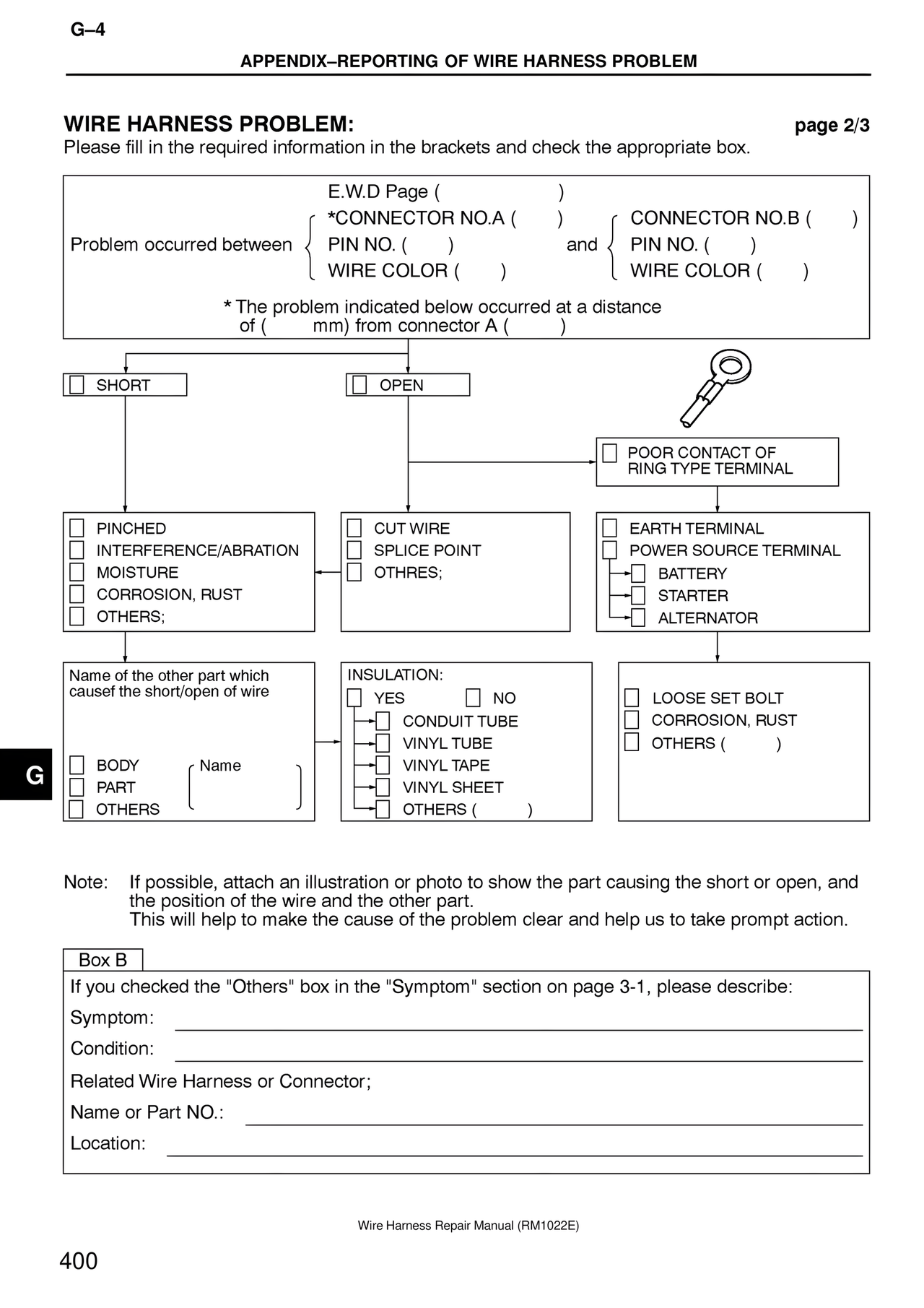

G–4 APPENDIX–REPORTING OF WIRE HARNESS PROBLEM WIRE HARNESS PROBLEM: page 2/3 Please fill in the required information in the brackets and check the appropriate box. E.W.D Page ( ) *CONNECTOR NO.A ( ) CONNECTOR NO.B ( ) Problem occurred between PIN NO. ( ) and PIN NO. ( ) WIRE COLOR ( ) WIRE COLOR ( ) * The problem indicated below occurred at a distance of ( mm) from connector A ( ) SHORT OPEN POOR CONTACT OF RING TYPE TERMINAL PINCHED CUT WIRE EARTH TERMINAL INTERFERENCE/ABRATION SPLICE POINT POWER SOURCE TERMINAL MOISTURE OTHRES; BATTERY CORROSION, RUST STARTER OTHERS; ALTERNATOR Name of the other part which INSULATION: causef the short/open of wire YES NO CONDUIT TUBE LOOSE SET BOLT VINYL TUBE CORROSION, RUST BODY Name VINYL TAPE OTHERS ( ) PART VINYL SHEET OTHERS OTHERS ( ) Note: If possible, attach an illustration or photo to show the part causing the short or open, and the position of the wire and the other part. This will help to make the cause of the problem clear and help us to take prompt action. Box B If you checked the "Others" box in the "Symptom" section on page 3-1, please describe: Symptom: Condition: Related Wire Harness or Connector; Name or Part NO.: Location: Wire Harness Repair Manual (RM1022E) 400
