B–36

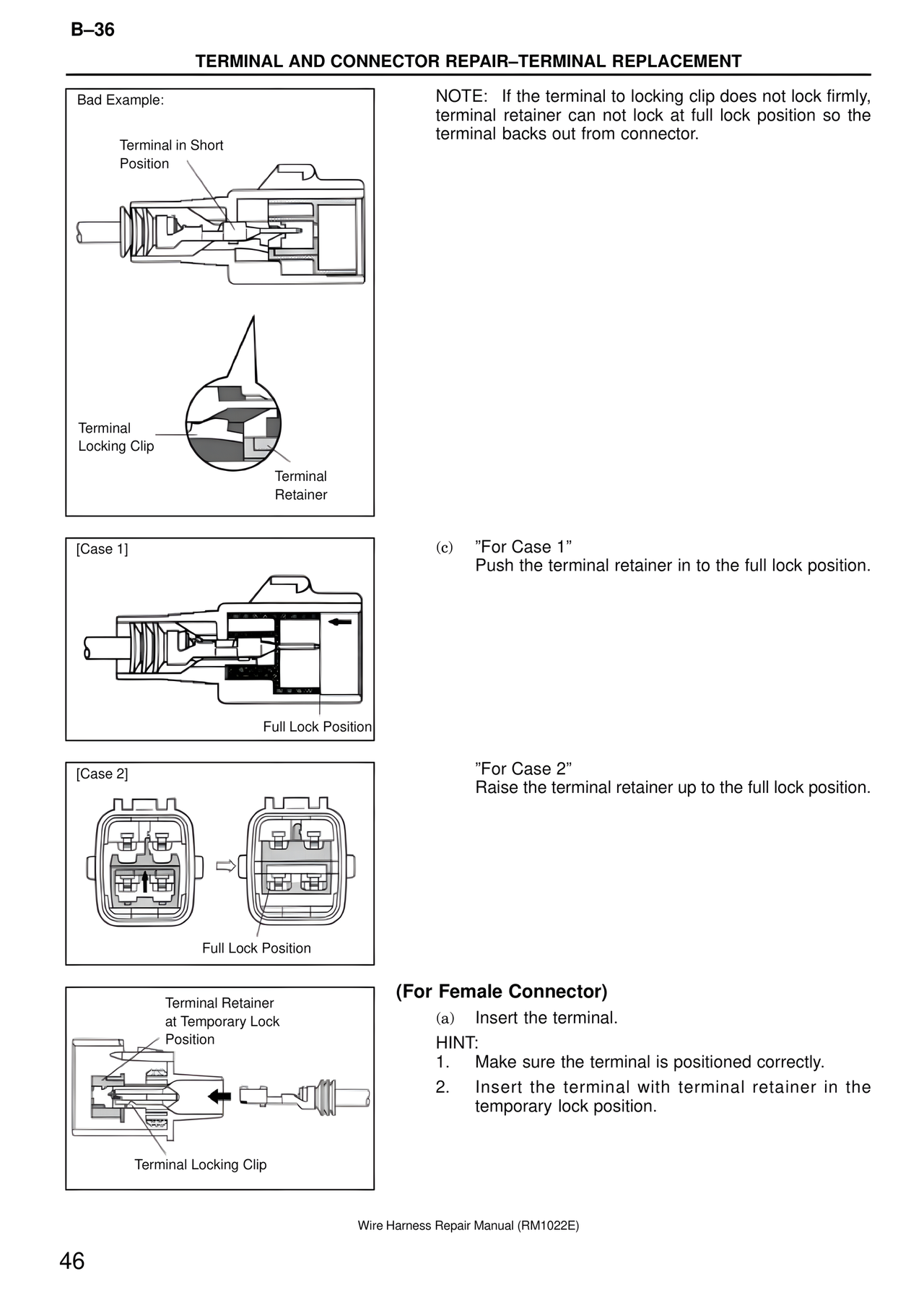

TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT
Bad Example:
Terminal in Short
Position
Terminal
Locking Clip
Terminal
Retainer
NOTE: If the terminal to locking clip does not lock firmly,
terminal retainer can not lock at full lock position so the
terminal backs out from connector.
[Case 1]
Full Lock Position
(c) "For Case 1"
Push the terminal retainer in to the full lock position.
[Case 2]
Full Lock Position
"For Case 2"
Raise the terminal retainer up to the full lock position.
Terminal Retainer
at Temporary Lock
Position
Terminal Locking Clip
(For Female Connector)
(a) Insert the terminal.
HINT:
1. Make sure the terminal is positioned correctly.
2. Insert the terminal with terminal retainer in the
temporary lock position.
