TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT

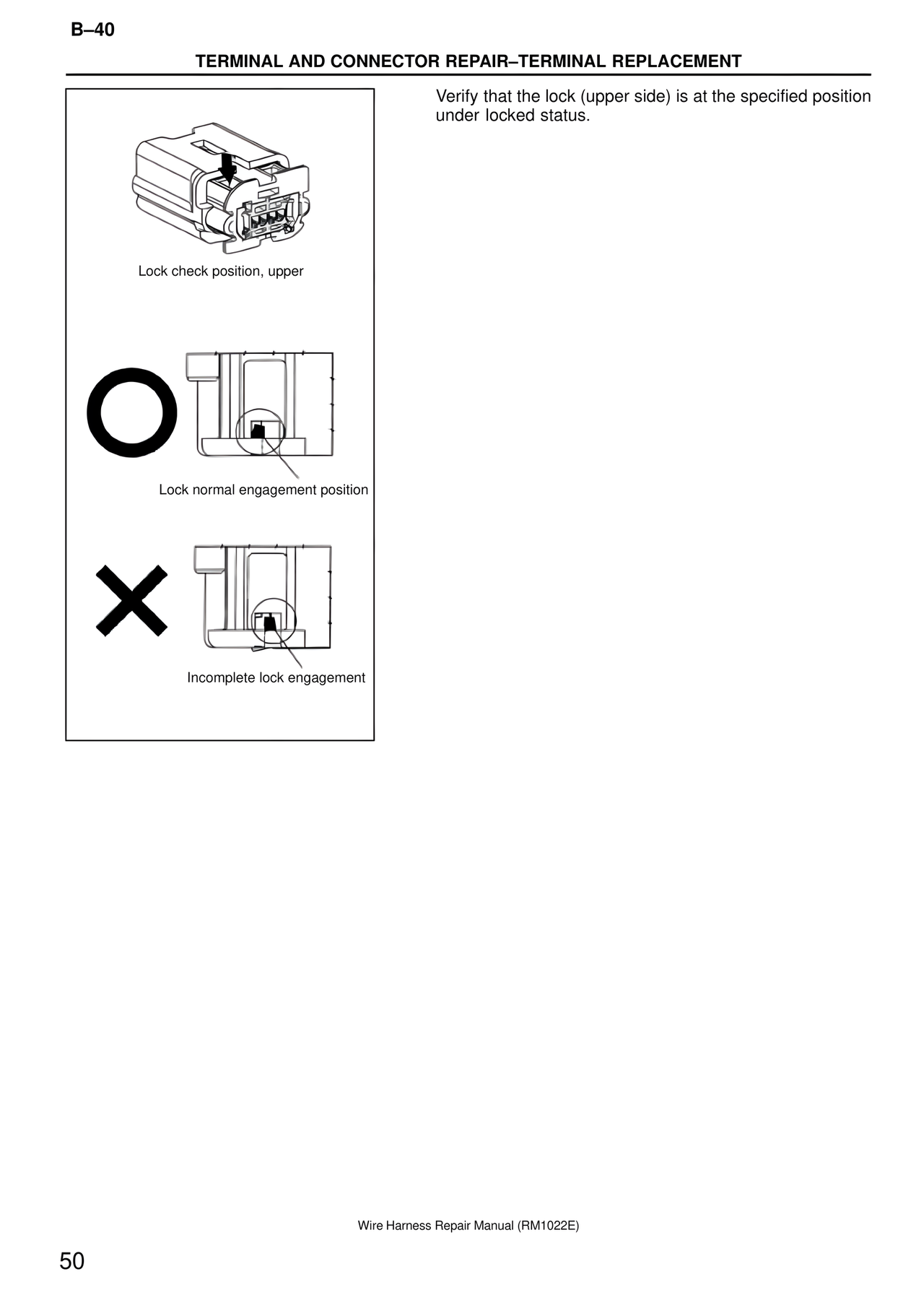

Lock check position, upper
Lock normal engagement position
Incomplete lock engagement
Verify that the lock (upper side) is at the specified position under locked status.
