B–41
TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT

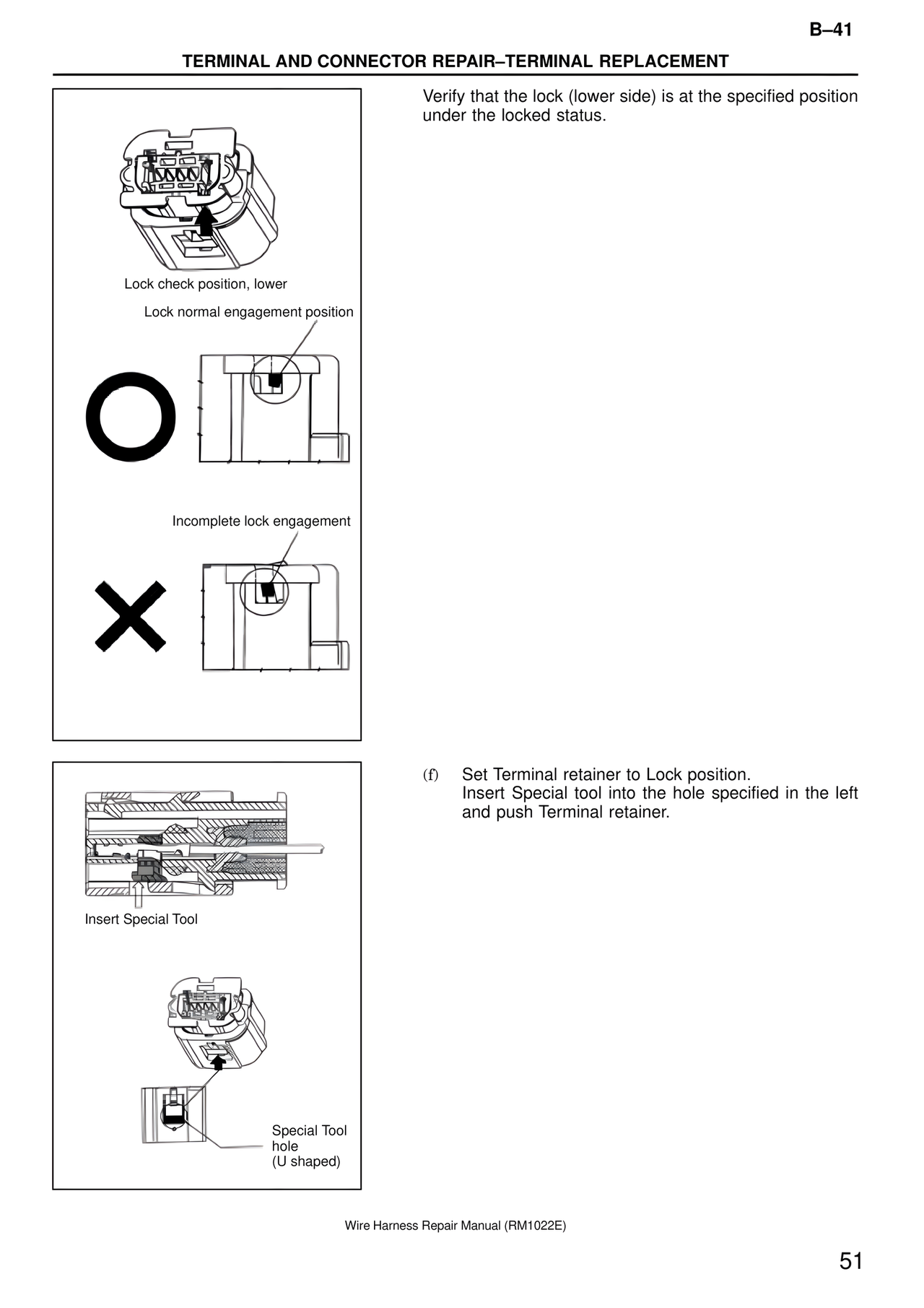

Verify that the lock (lower side) is at the specified position
under the locked status.
Lock check position, lower
Lock normal engagement position
Incomplete lock engagement
(f) Set Terminal retainer to Lock position.
Insert Special tool into the hole specified in the left
and push Terminal retainer.
Insert Special Tool
Special Tool
hole
(U shaped)
Wire Harness Repair Manual (RM1022E)
51
