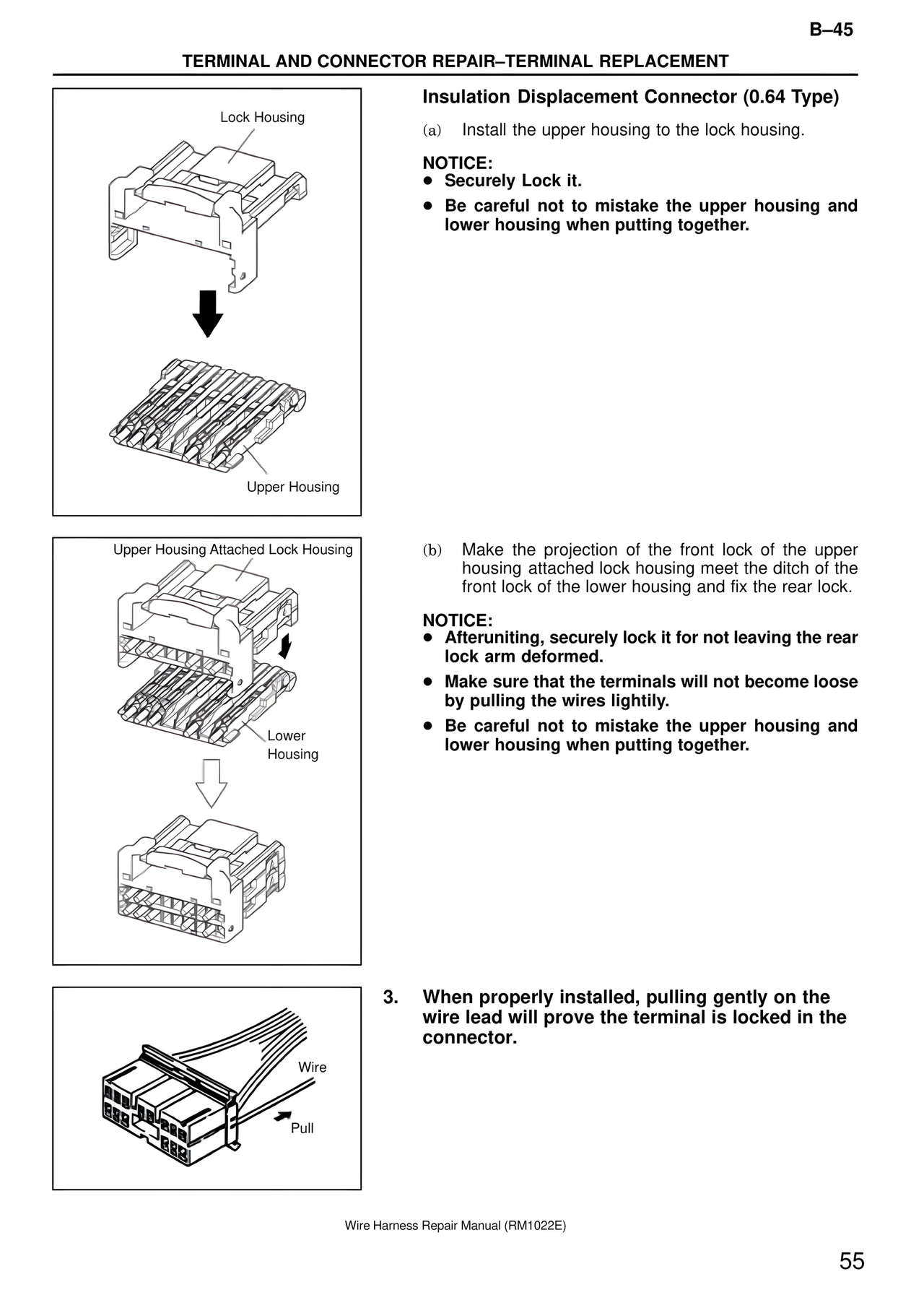

B–45 TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT Lock Housing Upper Housing Insulation Displacement Connector (0.64 Type) (a) Install the upper housing to the lock housing. NOTICE: ● Securely Lock it. ● Be careful not to mistake the upper housing and lower housing when putting together. Upper Housing Attached Lock Housing Lower Housing (b) Make the projection of the front lock of the upper housing attached lock housing meet the ditch of the front lock of the lower housing and fix the rear lock. NOTICE: ● Afteruniting, securely lock it for not leaving the rear lock arm deformed. ● Make sure that the terminals will not become loose by pulling the wires lightily. ● Be careful not to mistake the upper housing and lower housing when putting together. Wire Pull 3. When properly installed, pulling gently on the wire lead will prove the terminal is locked in the connector. Wire Harness Repair Manual (RM1022E) 55
