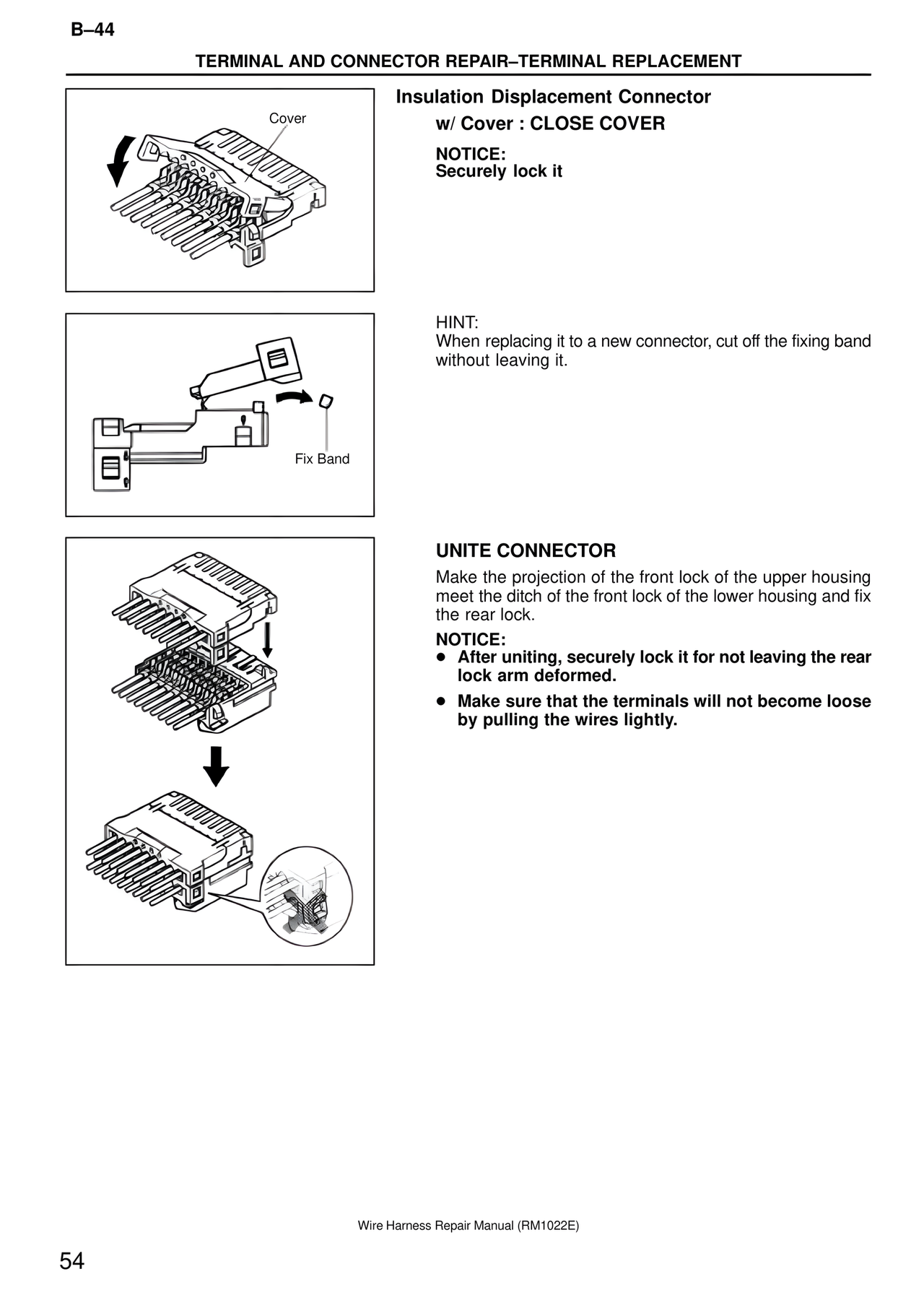

B–44 TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT Cover Insulation Displacement Connector w/ Cover : CLOSE COVER NOTICE: Securely lock it HINT: When replacing it to a new connector, cut off the fixing band without leaving it. Fix Band UNITE CONNECTOR Make the projection of the front lock of the upper housing meet the ditch of the front lock of the lower housing and fix the rear lock. NOTICE: ● After uniting, securely lock it for not leaving the rear lock arm deformed. ● Make sure that the terminals will not become loose by pulling the wires lightly. Wire Harness Repair Manual (RM1022E) 54
