C–5

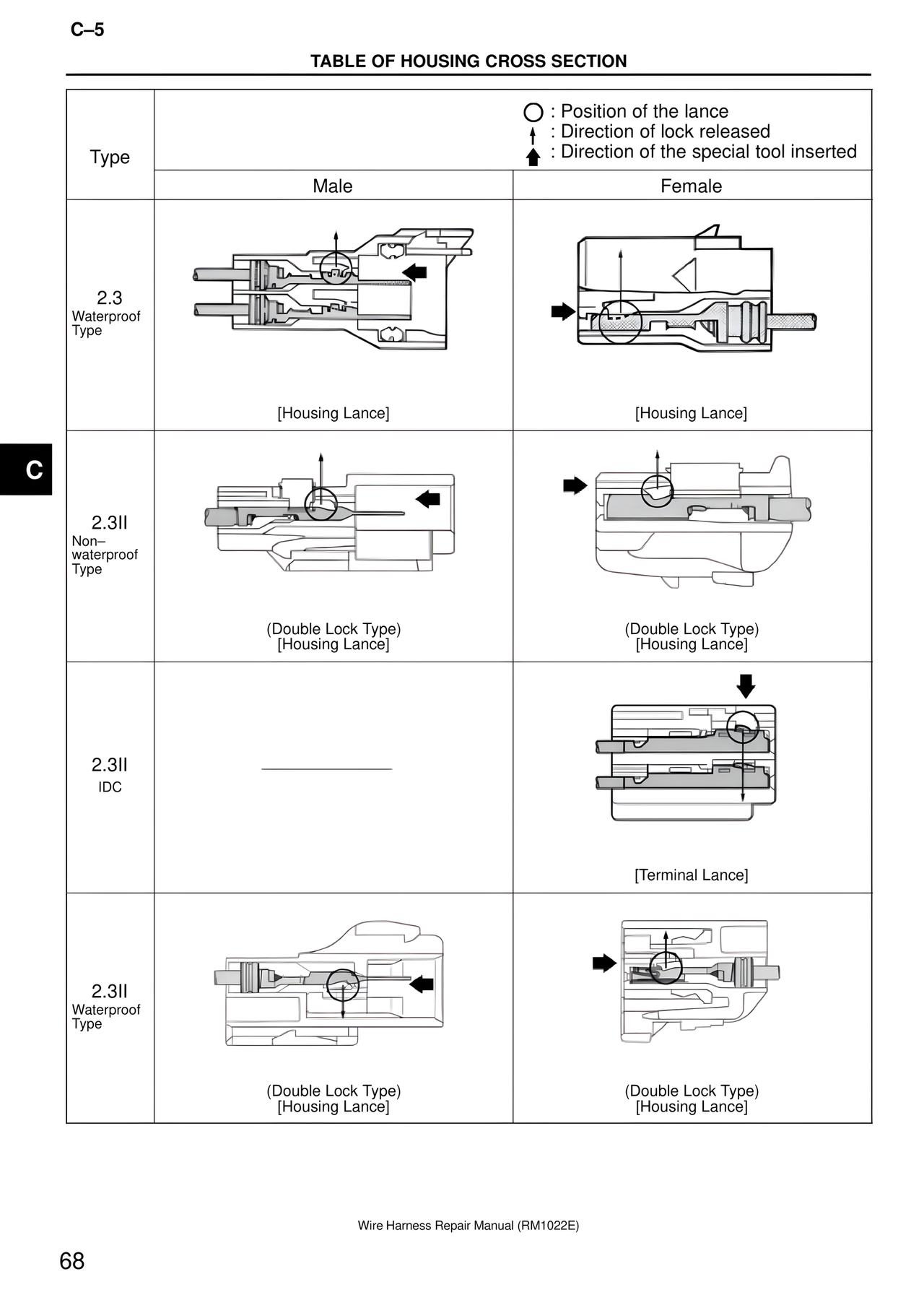

TABLE OF HOUSING CROSS SECTION
○ : Position of the lance
↑ : Direction of lock released
↑ : Direction of the special tool inserted
Type
Male
Female
2.3
Waterproof
Type
[Housing Lance]
[Housing Lance]
2.3II
Non–
waterproof
Type
(Double Lock Type)
[Housing Lance]
(Double Lock Type)
[Housing Lance]
2.3II
IDC
[Terminal Lance]
2.3II
Waterproof
Type
(Double Lock Type)
[Housing Lance]
(Double Lock Type)
[Housing Lance]
C
Wire Harness Repair Manual (RM1022E)
68
