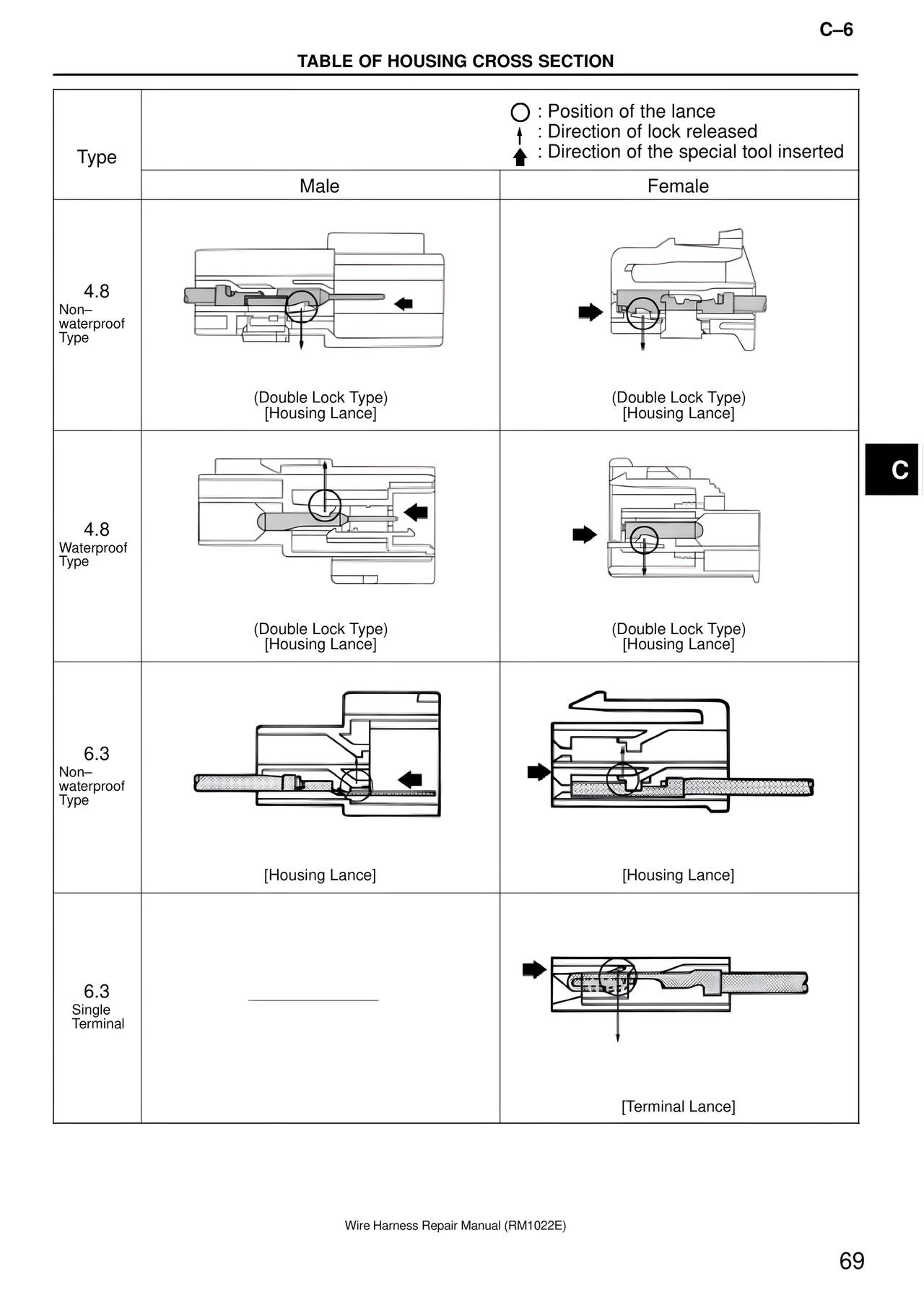

TABLE OF HOUSING CROSS SECTION
○ : Position of the lance
↕ : Direction of lock released
↑ : Direction of the special tool inserted
Type
Male Female
4.8
Non–
waterproof
Type
(Double Lock Type)
[Housing Lance]
(Double Lock Type)
[Housing Lance]
C
4.8
Waterproof
Type
(Double Lock Type)
[Housing Lance]
(Double Lock Type)
[Housing Lance]
6.3
Non–
waterproof
Type
[Housing Lance]
[Housing Lance]
6.3
Single
Terminal
[Terminal Lance]
