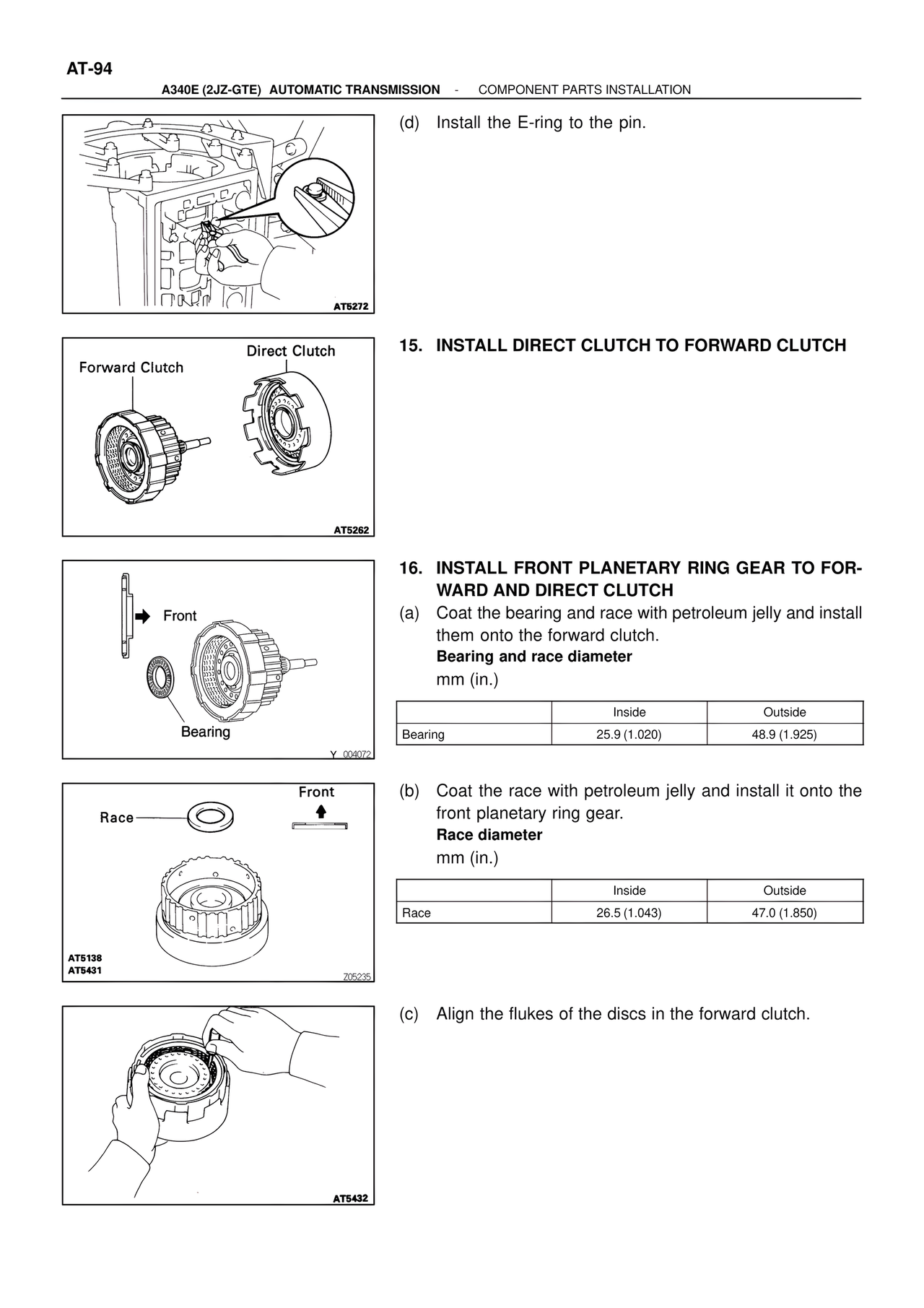

AT-94
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION
AT5272
(d) Install the E-ring to the pin.
Forward Clutch Direct Clutch
AT5262
15. INSTALL DIRECT CLUTCH TO FORWARD CLUTCH
Front
Bearing
Y_004072
16. INSTALL FRONT PLANETARY RING GEAR TO FOR-
WARD AND DIRECT CLUTCH
(a) Coat the bearing and race with petroleum jelly and install
them onto the forward clutch.
Bearing and race diameter
mm (in.)
Inside Outside
Bearing 25.9 (1.020) 48.9 (1.925)
Race
Front
AT5138
AT5431
705235
(b) Coat the race with petroleum jelly and install it onto the
front planetary ring gear.
Race diameter
mm (in.)
Inside Outside
Race 26.5 (1.043) 47.0 (1.850)
AT5432
(c) Align the flukes of the discs in the forward clutch.
