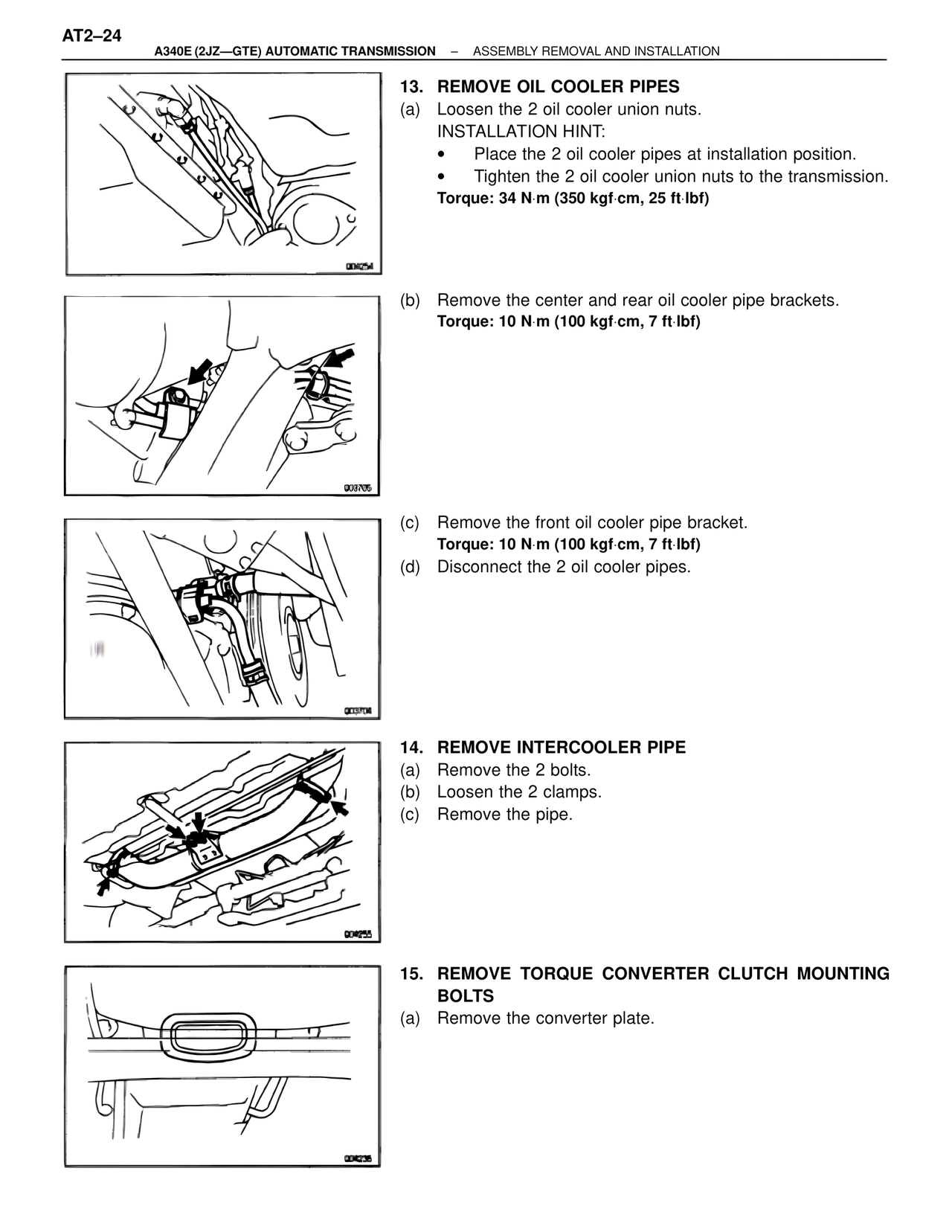

AT2–24 A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – ASSEMBLY REMOVAL AND INSTALLATION 13. REMOVE OIL COOLER PIPES (a) Loosen the 2 oil cooler union nuts. INSTALLATION HINT: • Place the 2 oil cooler pipes at installation position. • Tighten the 2 oil cooler union nuts to the transmission. Torque: 34 N·m (350 kgf·cm, 25 ft·lbf) (b) Remove the center and rear oil cooler pipe brackets. Torque: 10 N·m (100 kgf·cm, 7 ft·lbf) (c) Remove the front oil cooler pipe bracket. Torque: 10 N·m (100 kgf·cm, 7 ft·lbf) (d) Disconnect the 2 oil cooler pipes. 14. REMOVE INTERCOOLER PIPE (a) Remove the 2 bolts. (b) Loosen the 2 clamps. (c) Remove the pipe. 15. REMOVE TORQUE CONVERTER CLUTCH MOUNTING BOLTS (a) Remove the converter plate. Q00254 Q03705 Q03706 Q04255 Q04236
