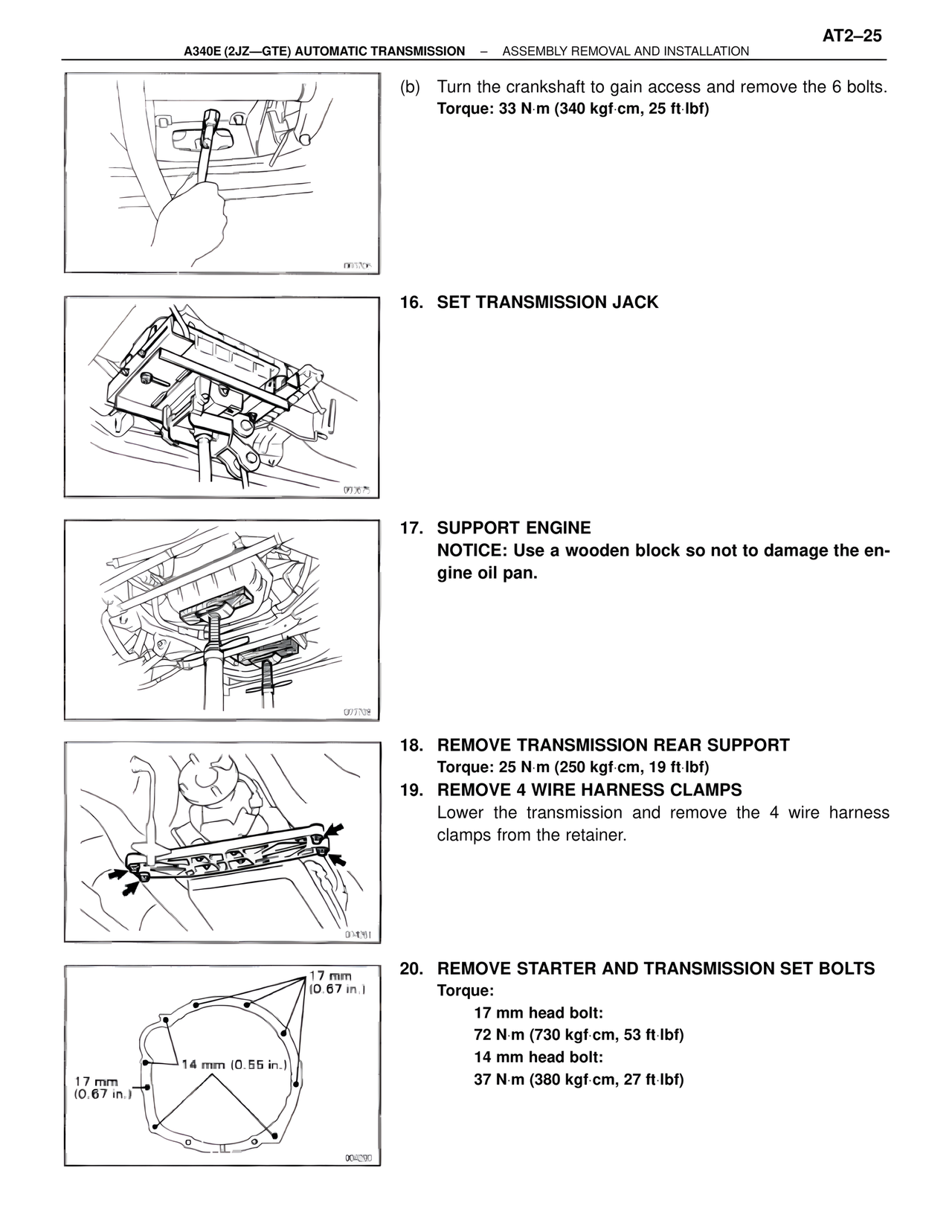

AT2–25 A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – ASSEMBLY REMOVAL AND INSTALLATION (b) Turn the crankshaft to gain access and remove the 6 bolts. Torque: 33 N·m (340 kgf·cm, 25 ft·lbf) 16. SET TRANSMISSION JACK 17. SUPPORT ENGINE NOTICE: Use a wooden block so not to damage the engine oil pan. 18. REMOVE TRANSMISSION REAR SUPPORT Torque: 25 N·m (250 kgf·cm, 19 ft·lbf) 19. REMOVE 4 WIRE HARNESS CLAMPS Lower the transmission and remove the 4 wire harness clamps from the retainer. 20. REMOVE STARTER AND TRANSMISSION SET BOLTS Torque: 17 mm head bolt: 72 N·m (730 kgf·cm, 53 ft·lbf) 14 mm head bolt: 37 N·m (380 kgf·cm, 27 ft·lbf) 17 mm (0.67 in.) 14 mm (0.55 in.) 17 mm (0.67 in.)
