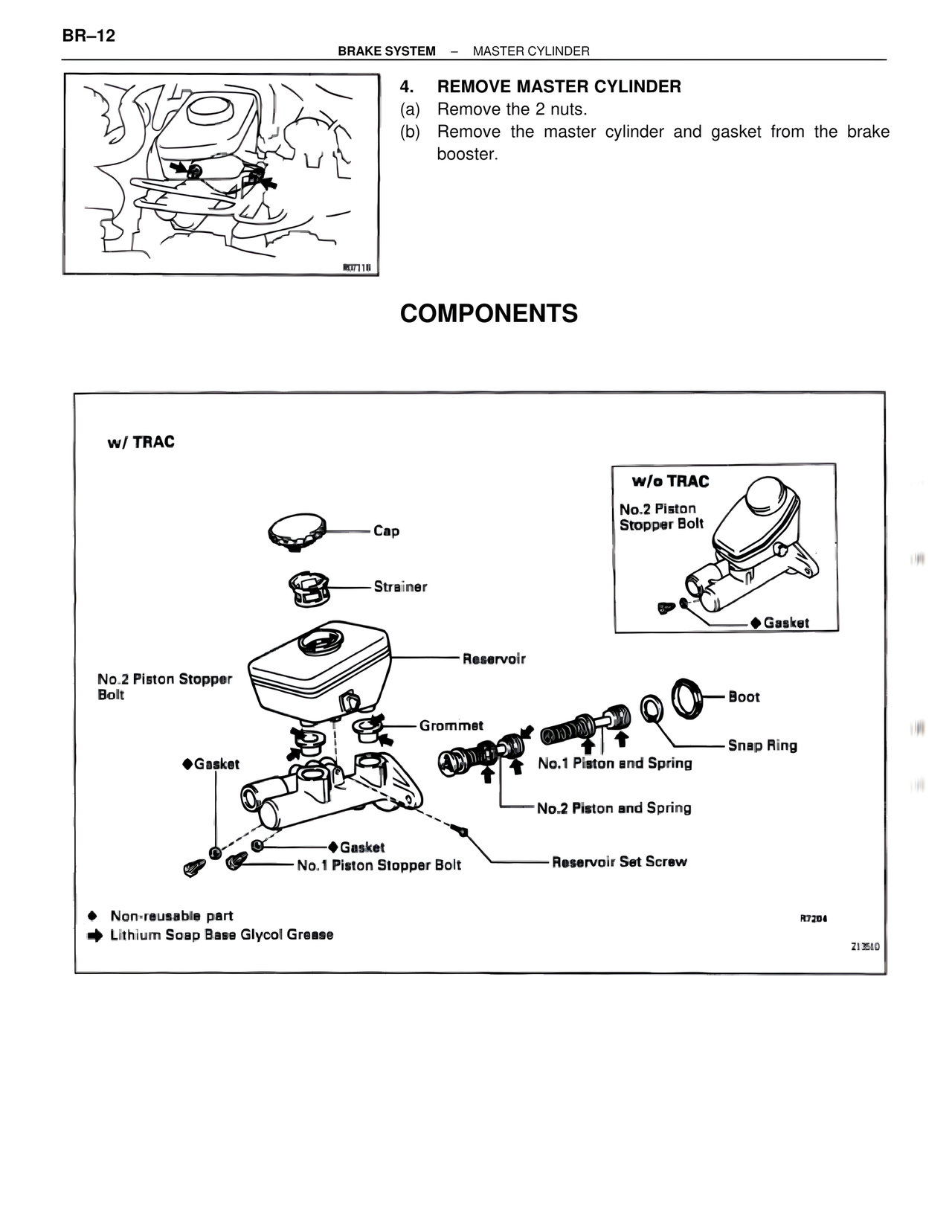

BR–12 BRAKE SYSTEM – MASTER CYLINDER 4. REMOVE MASTER CYLINDER (a) Remove the 2 nuts. (b) Remove the master cylinder and gasket from the brake booster. COMPONENTS w/ TRAC Cap Strainer Reservoir No.2 Piston Stopper Bolt Grommet ♦Gasket ♦Gasket No.1 Piston Stopper Bolt Reservoir Set Screw No.2 Piston and Spring No.1 Piston and Spring Snap Ring Boot w/o TRAC No.2 Piston Stopper Bolt ♦Gasket ♦ Non-reusable part ➡ Lithium Soap Base Glycol Grease R7204 Z13560
