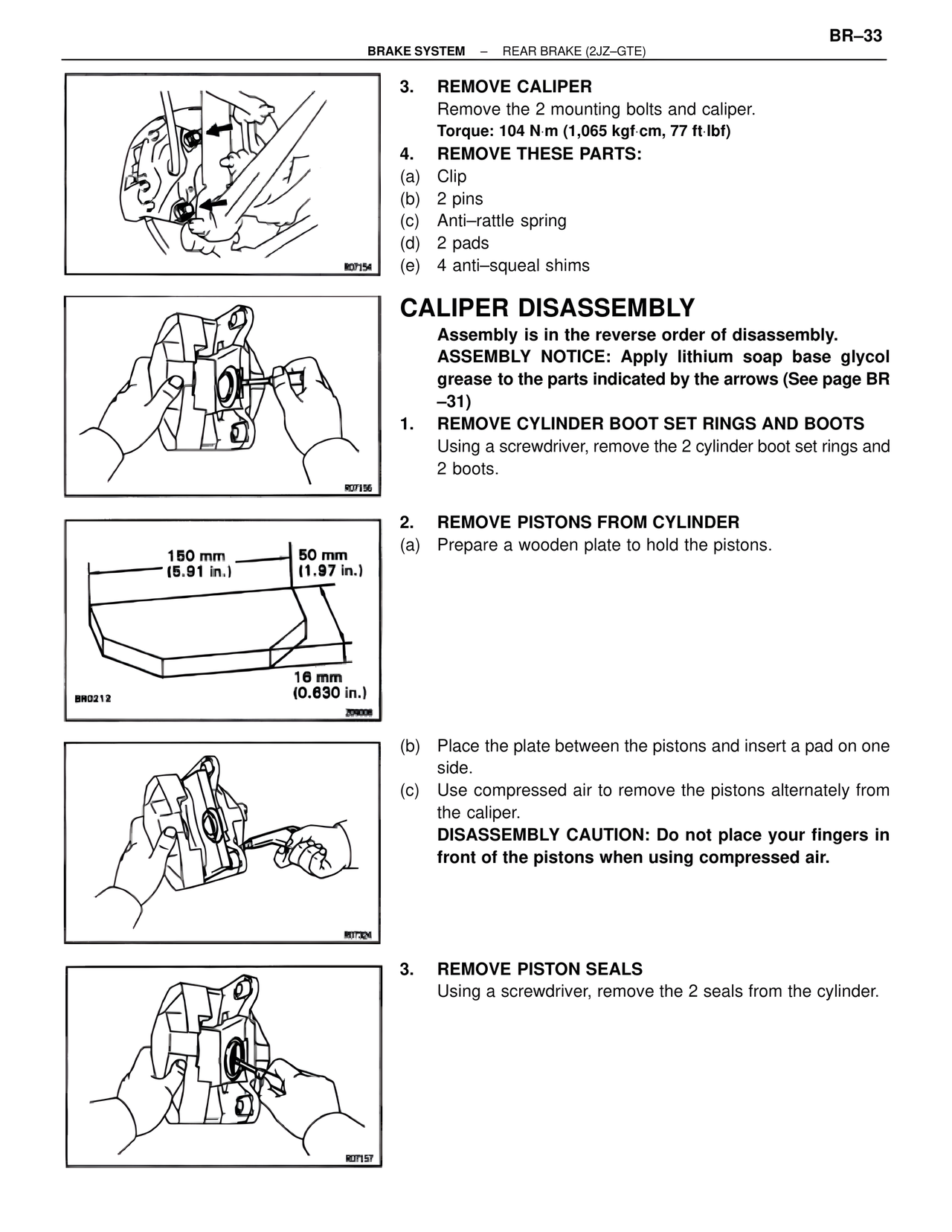

BR–33 BRAKE SYSTEM – REAR BRAKE (2JZ–GTE) 3. REMOVE CALIPER Remove the 2 mounting bolts and caliper. Torque: 104 N·m (1,065 kgf·cm, 77 ft·lbf) 4. REMOVE THESE PARTS: (a) Clip (b) 2 pins (c) Anti–rattle spring (d) 2 pads (e) 4 anti–squeal shims CALIPER DISASSEMBLY Assembly is in the reverse order of disassembly. ASSEMBLY NOTICE: Apply lithium soap base glycol grease to the parts indicated by the arrows (See page BR–31) 1. REMOVE CYLINDER BOOT SET RINGS AND BOOTS Using a screwdriver, remove the 2 cylinder boot set rings and 2 boots. 2. REMOVE PISTONS FROM CYLINDER (a) Prepare a wooden plate to hold the pistons. 150 mm (5.91 in.) 50 mm (1.97 in.) 16 mm (0.630 in.) BR0212 209008 (b) Place the plate between the pistons and insert a pad on one side. (c) Use compressed air to remove the pistons alternately from the caliper. DISASSEMBLY CAUTION: Do not place your fingers in front of the pistons when using compressed air. 3. REMOVE PISTON SEALS Using a screwdriver, remove the 2 seals from the cylinder. R07154 R07156 R07324 R07157
