BR–82
BRAKE SYSTEM – ANTI–LOCK BRAKE SYSTEM (ABS)

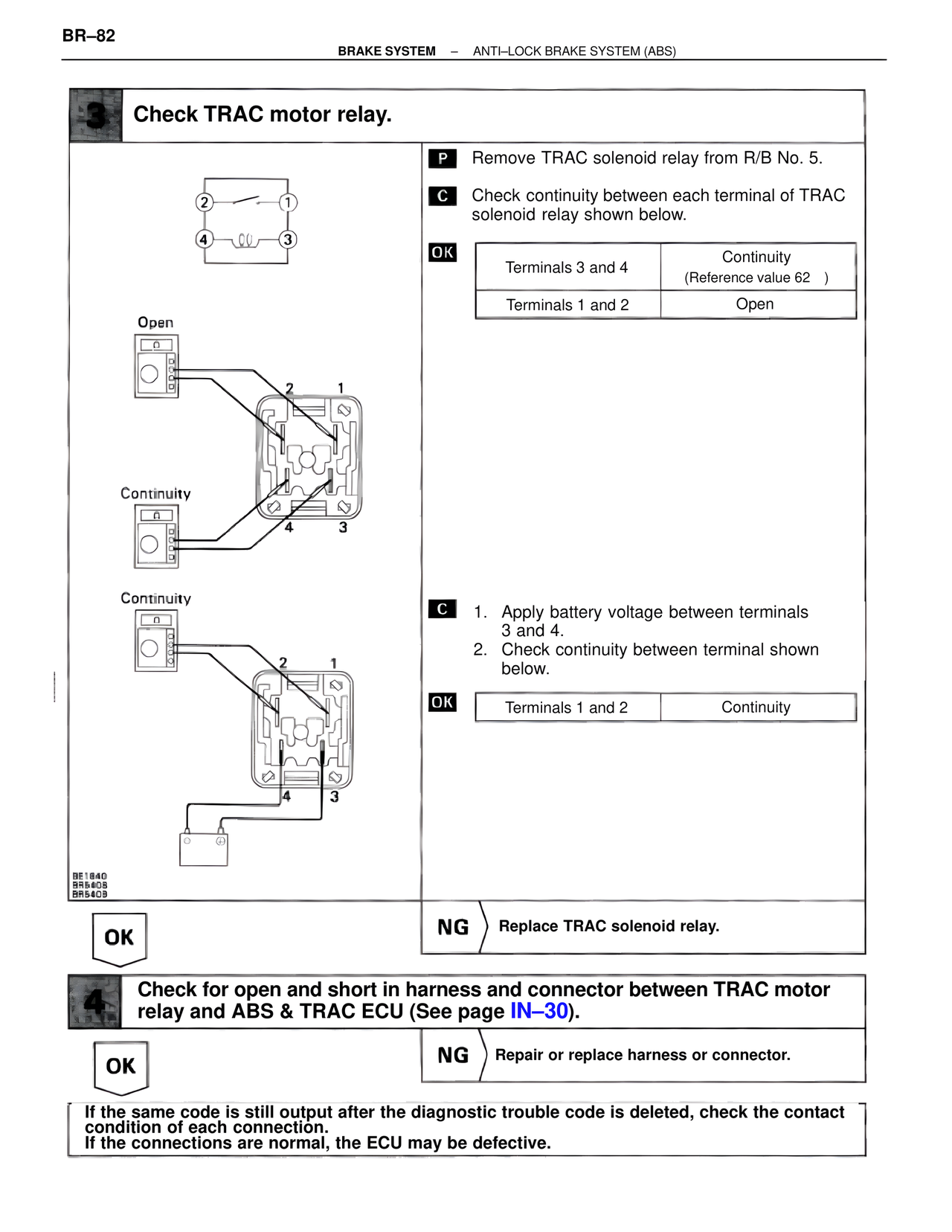

3 Check TRAC motor relay.
P Remove TRAC solenoid relay from R/B No. 5.
C Check continuity between each terminal of TRAC solenoid relay shown below.
OK
Terminals 3 and 4 Continuity (Reference value 62 )
Terminals 1 and 2 Open
Open
Continuity
Continuity
C 1. Apply battery voltage between terminals 3 and 4.
2. Check continuity between terminal shown below.
OK
Terminals 1 and 2 Continuity
BE1840
BR54C8
BR54C9
OK NG Replace TRAC solenoid relay.
4 Check for open and short in harness and connector between TRAC motor relay and ABS & TRAC ECU (See page IN–30).
OK NG Repair or replace harness or connector.
If the same code is still output after the diagnostic trouble code is deleted, check the contact condition of each connection.
If the connections are normal, the ECU may be defective.
