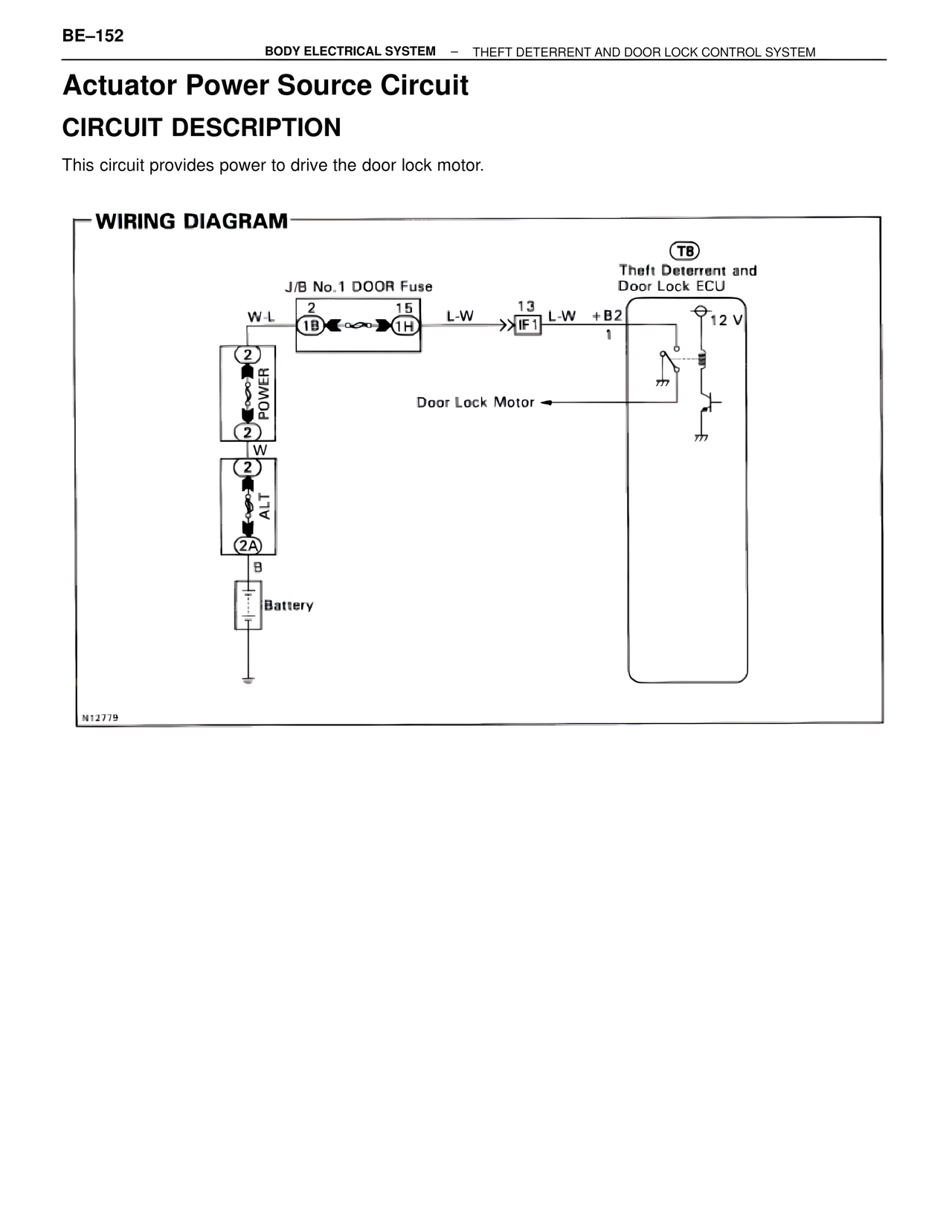

BE–152 BODY ELECTRICAL SYSTEM – THEFT DETERRENT AND DOOR LOCK CONTROL SYSTEM Actuator Power Source Circuit CIRCUIT DESCRIPTION This circuit provides power to drive the door lock motor. WIRING DIAGRAM T8 Theft Deterrent and Door Lock ECU J/B No.1 DOOR Fuse 2 15 1B 1H W-L L-W 13 L-W +B2 IF1 1 2 POWER 2 W 2 ALT 2A B Battery +12 V Door Lock Motor N12779
