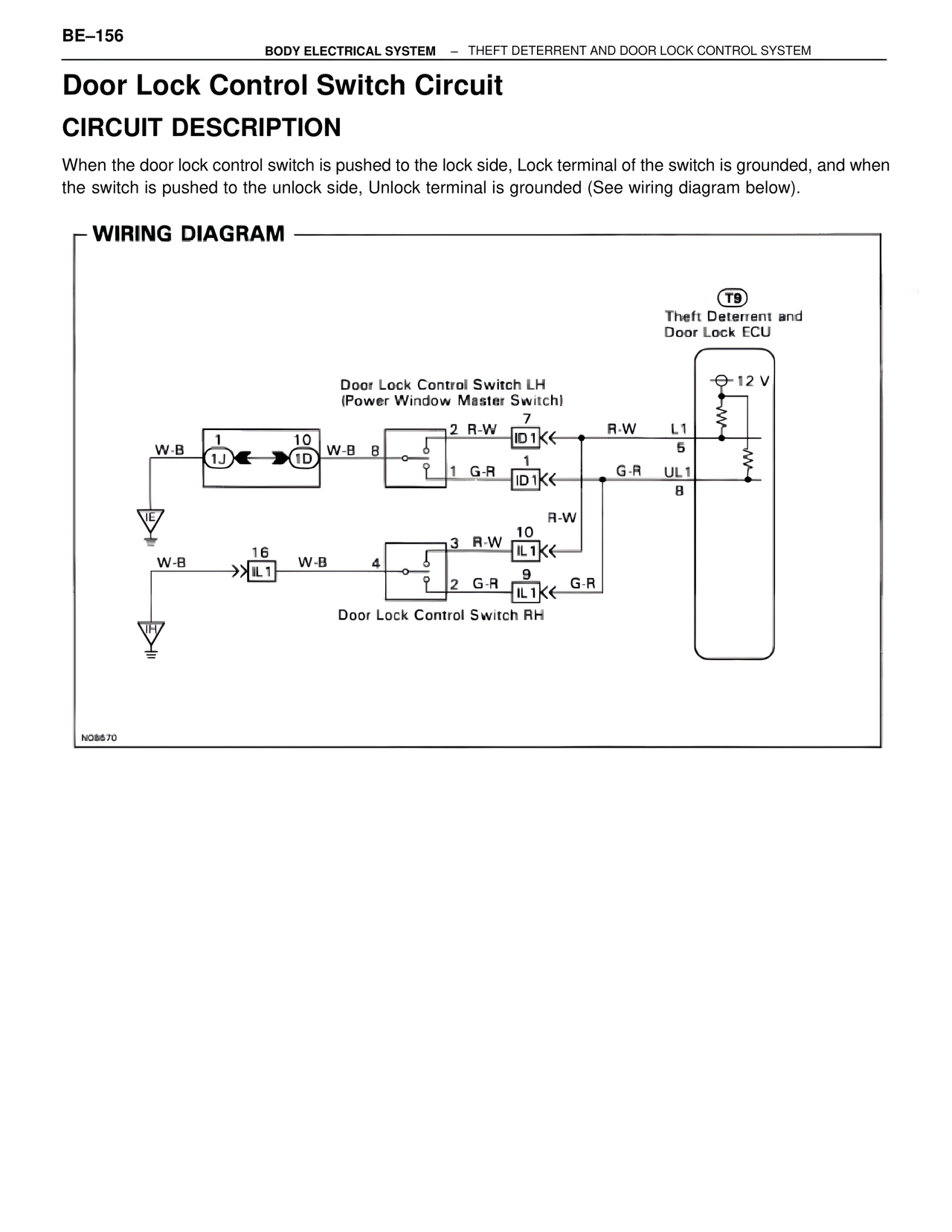

BE–156 BODY ELECTRICAL SYSTEM – THEFT DETERRENT AND DOOR LOCK CONTROL SYSTEM Door Lock Control Switch Circuit CIRCUIT DESCRIPTION When the door lock control switch is pushed to the lock side, Lock terminal of the switch is grounded, and when the switch is pushed to the unlock side, Unlock terminal is grounded (See wiring diagram below). WIRING DIAGRAM T9 Theft Deterrent and Door Lock ECU 12 V Door Lock Control Switch LH (Power Window Master Switch) 2 R-W 7 ID1 R-W L1 5 1 G-R 1 ID1 G-R UL1 8 W-B 1 10 1J 1D W-B 8 IE R-W 3 R-W 10 IL1 W-B 16 2 G-R 9 IL1 W-B 4 G-R IH Door Lock Control Switch RH NO8670
