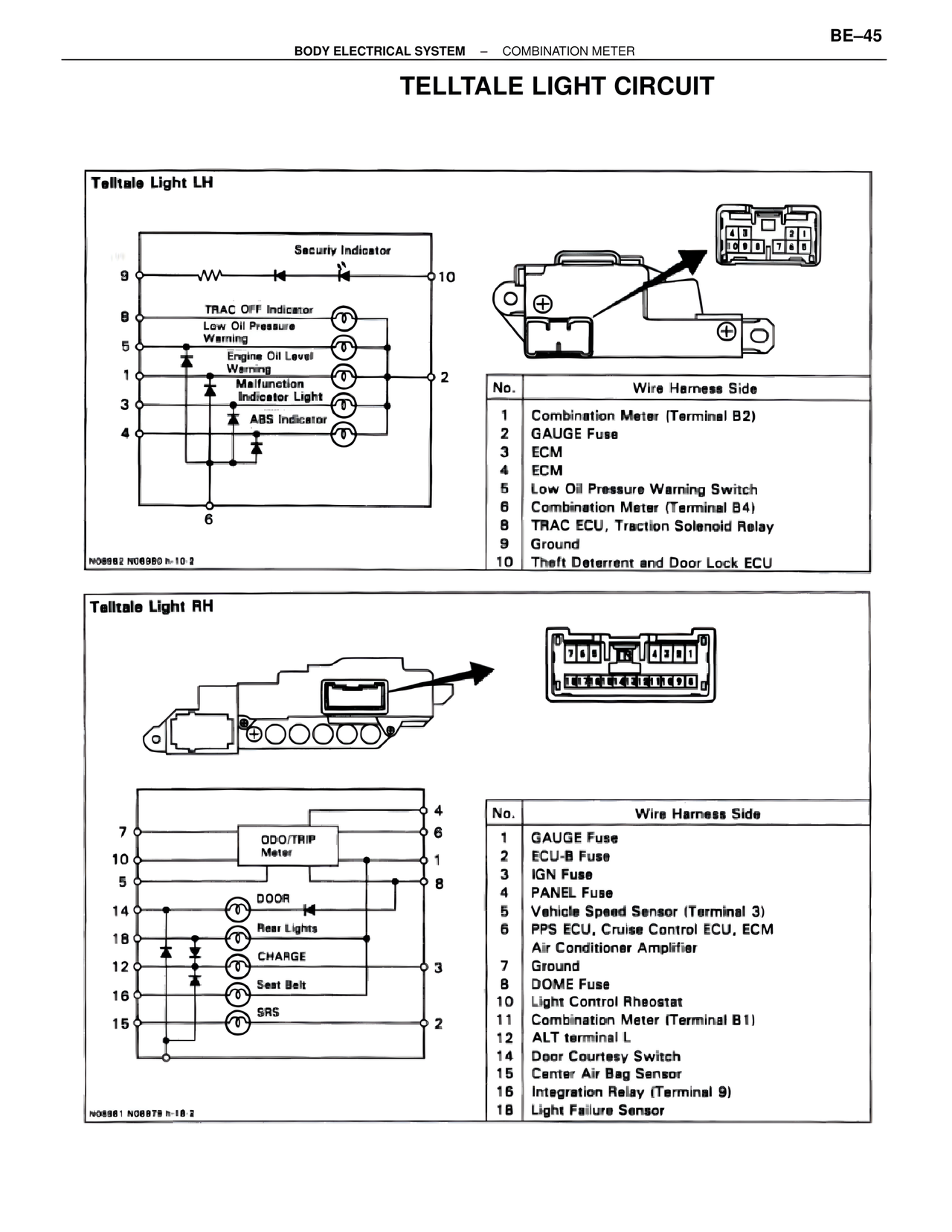

BODY ELECTRICAL SYSTEM – COMBINATION METER BE–45 TELLTALE LIGHT CIRCUIT Telltale Light LH Security Indicator 9 ——W——|>|—— 10 TRAC OFF Indicator 8 Low Oil Pressure 5 Warning Engine Oil Level 1 Warning Malfunction 3 Indicator Light ABS Indicator 4 6 N08982 N08980 h-10-2 No. Wire Harness Side 1 Combination Meter (Terminal B2) 2 GAUGE Fuse 3 ECM 4 ECM 5 Low Oil Pressure Warning Switch 6 Combination Meter (Terminal B4) 8 TRAC ECU, Traction Solenoid Relay 9 Ground 10 Theft Deterrent and Door Lock ECU Telltale Light RH ODO/TRIP Meter DOOR 14 Rear Lights 18 CHARGE 12 Seat Belt 16 SRS 15 7 10 5 N08981 N08979 h-18-2 No. Wire Harness Side 1 GAUGE Fuse 2 ECU-B Fuse 3 IGN Fuse 4 PANEL Fuse 5 Vehicle Speed Sensor (Terminal 3) 6 PPS ECU, Cruise Control ECU, ECM Air Conditioner Amplifier 7 Ground 8 DOME Fuse 10 Light Control Rheostat 11 Combination Meter (Terminal B1) 12 ALT terminal L 14 Door Courtesy Switch 15 Center Air Bag Sensor 16 Integration Relay (Terminal 9) 18 Light Failure Sensor
