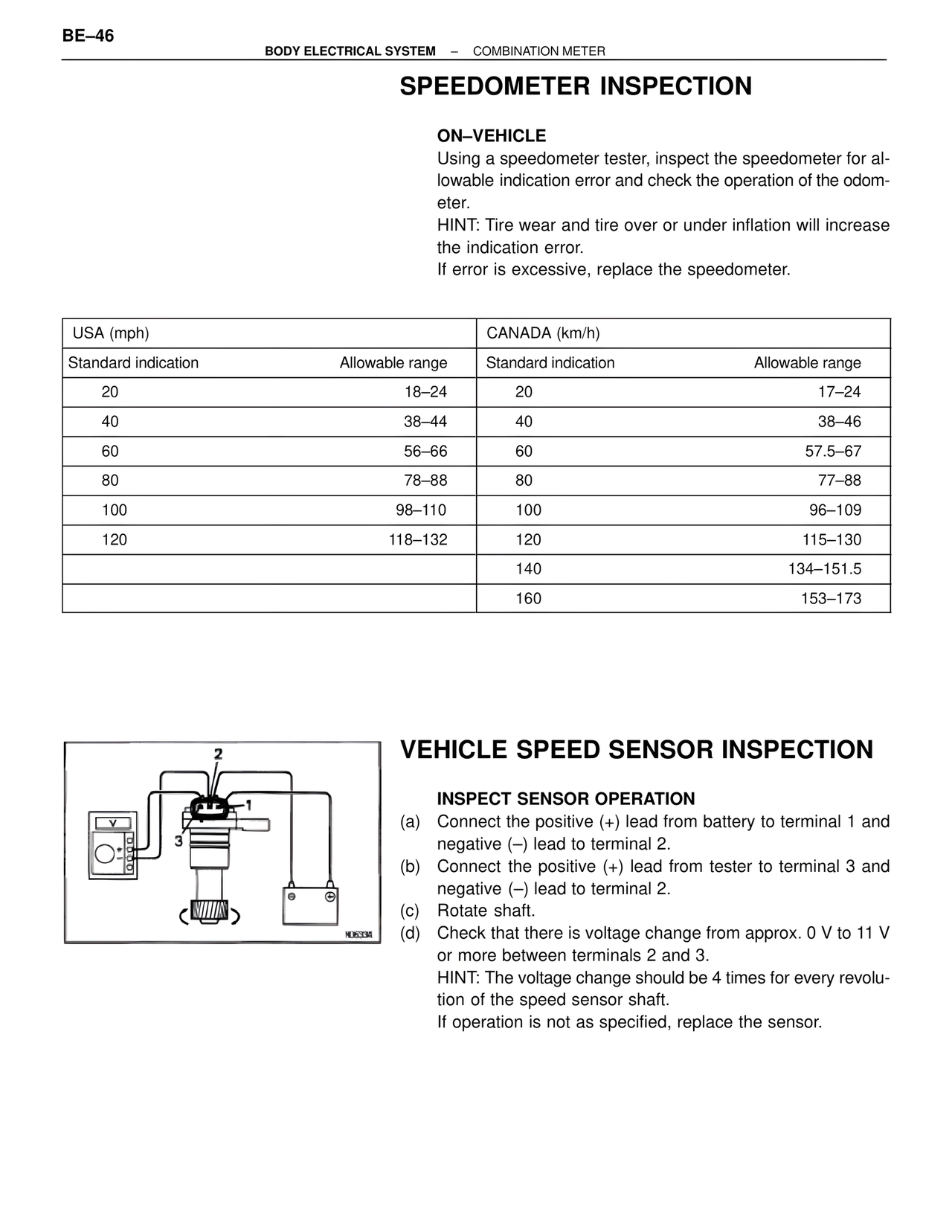

BE–46 BODY ELECTRICAL SYSTEM – COMBINATION METER SPEEDOMETER INSPECTION ON–VEHICLE Using a speedometer tester, inspect the speedometer for allowable indication error and check the operation of the odometer. HINT: Tire wear and tire over or under inflation will increase the indication error. If error is excessive, replace the speedometer. USA (mph) Standard indication Allowable range 20 18–24 40 38–44 60 56–66 80 78–88 100 98–110 120 118–132 CANADA (km/h) Standard indication Allowable range 20 17–24 40 38–46 60 57.5–67 80 77–88 100 96–109 120 115–130 140 134–151.5 160 153–173 VEHICLE SPEED SENSOR INSPECTION INSPECT SENSOR OPERATION (a) Connect the positive (+) lead from battery to terminal 1 and negative (–) lead to terminal 2. (b) Connect the positive (+) lead from tester to terminal 3 and negative (–) lead to terminal 2. (c) Rotate shaft. (d) Check that there is voltage change from approx. 0 V to 11 V or more between terminals 2 and 3. HINT: The voltage change should be 4 times for every revolution of the speed sensor shaft. If operation is not as specified, replace the sensor. H06334
