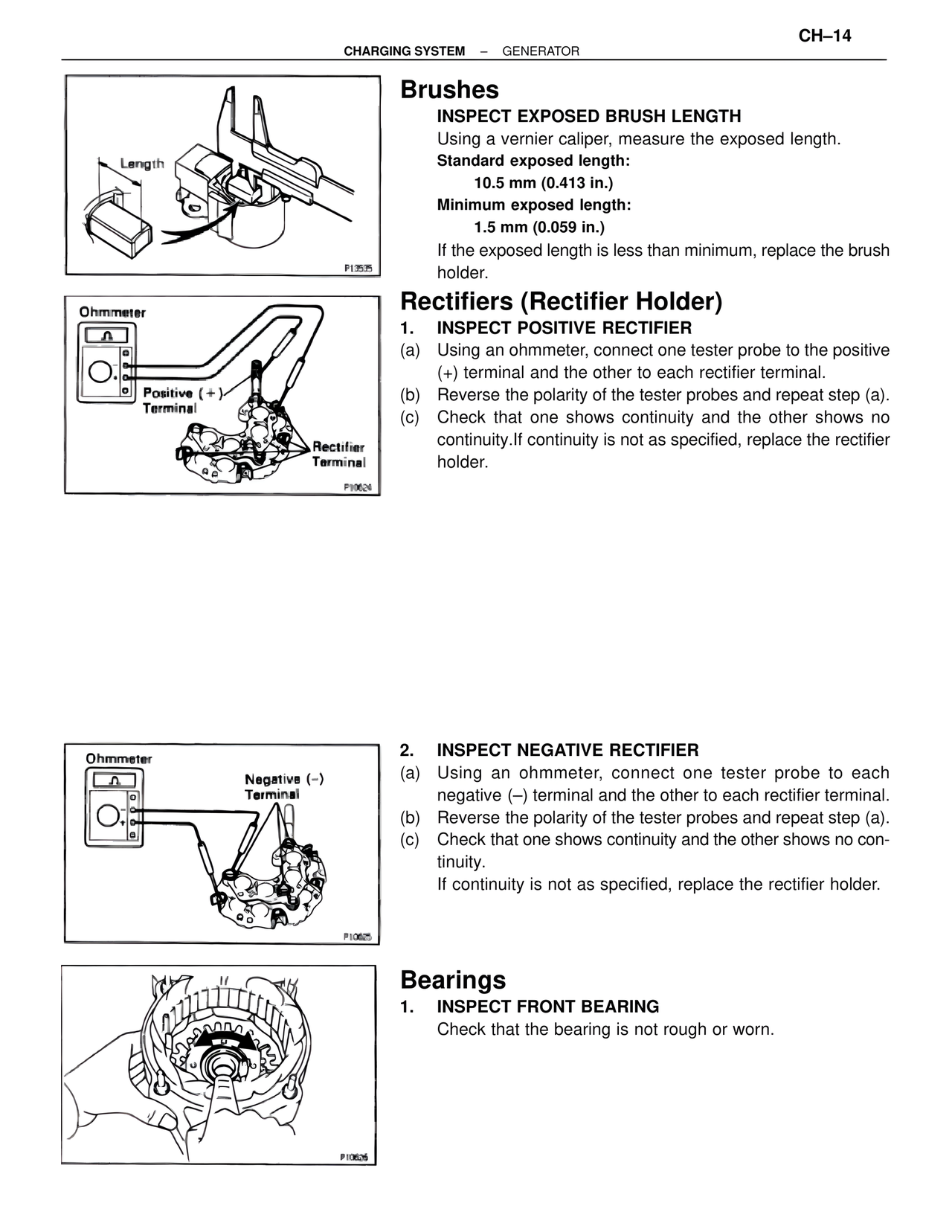

CH–14
CHARGING SYSTEM – GENERATOR
Brushes
INSPECT EXPOSED BRUSH LENGTH
Using a vernier caliper, measure the exposed length.
Standard exposed length:
10.5 mm (0.413 in.)
Minimum exposed length:
1.5 mm (0.059 in.)
If the exposed length is less than minimum, replace the brush holder.
Length
P13535
Ohmmeter
Positive (+)
Terminal
Rectifier
Terminal
P10626
Rectifiers (Rectifier Holder)
1. INSPECT POSITIVE RECTIFIER
(a) Using an ohmmeter, connect one tester probe to the positive (+) terminal and the other to each rectifier terminal.
(b) Reverse the polarity of the tester probes and repeat step (a).
(c) Check that one shows continuity and the other shows no continuity. If continuity is not as specified, replace the rectifier holder.
Ohmmeter
Negative (–)
Terminal
P10625
2. INSPECT NEGATIVE RECTIFIER
(a) Using an ohmmeter, connect one tester probe to each negative (–) terminal and the other to each rectifier terminal.
(b) Reverse the polarity of the tester probes and repeat step (a).
(c) Check that one shows continuity and the other shows no continuity.
If continuity is not as specified, replace the rectifier holder.
P10626
Bearings
1. INSPECT FRONT BEARING
Check that the bearing is not rough or worn.
