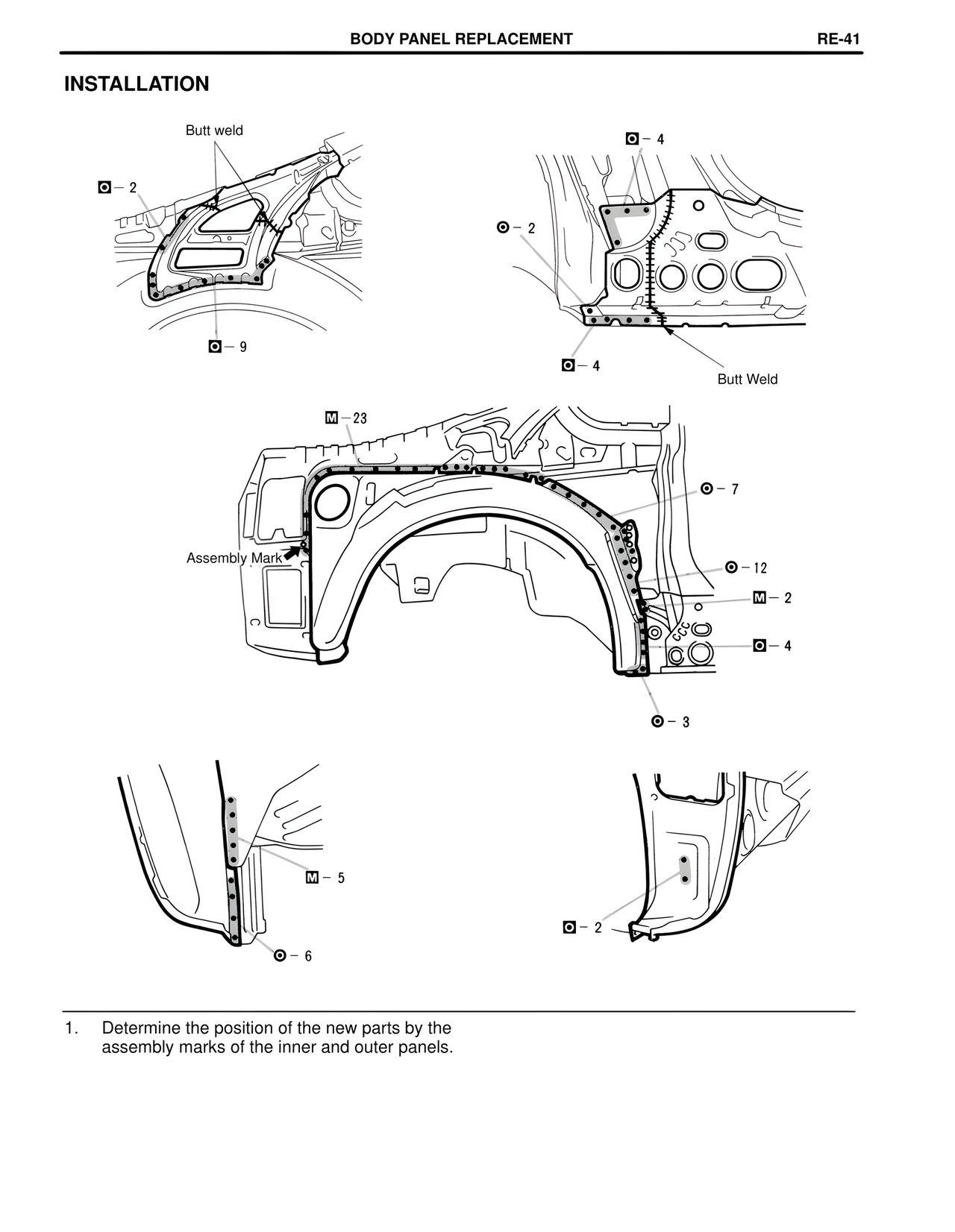

BODY PANEL REPLACEMENT
RE-41
INSTALLATION
Butt weld
⊙ − 2
⊙ − 9
⊙ − 4
⊙ − 2
⊙ − 4
Butt Weld
M − 23
⊙ − 7
Assembly Mark
⊙ − 12
M − 2
⊙ − 4
⊙ − 3
M − 5
⊙ − 6
⊙ − 2
1. Determine the position of the new parts by the
assembly marks of the inner and outer panels.
