RE-42 BODY PANEL REPLACEMENT
QUARTER WHEEL HOUSING OUTER PANEL
(ASSY): Normal Roof Left Side

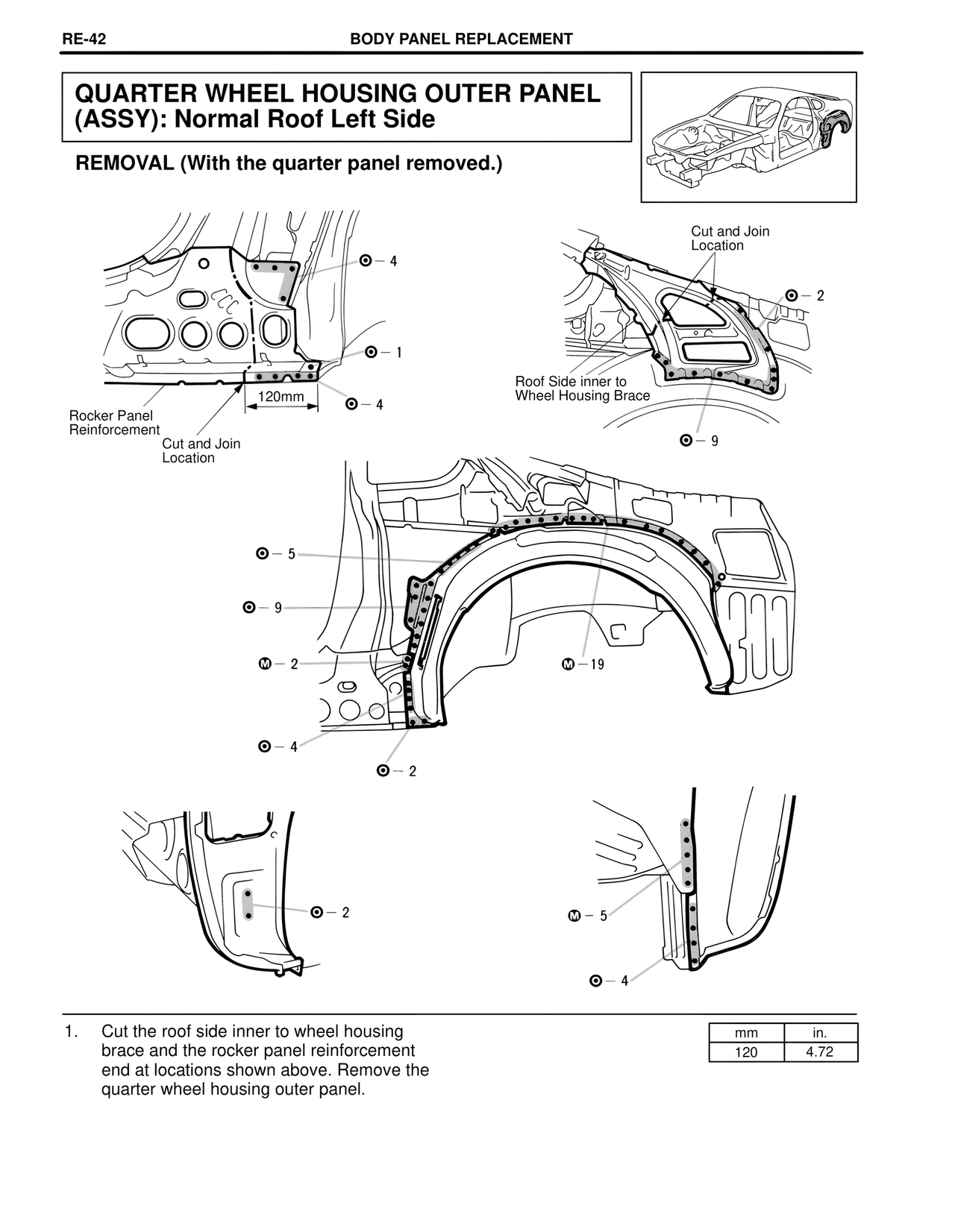

REMOVAL (With the quarter panel removed.)
Cut and Join
Location
⊙ - 4
⊙ - 2
⊙ - 1
Roof Side inner to
Wheel Housing Brace
120mm
⊙ - 4
⊙ - 9
Rocker Panel
Reinforcement
Cut and Join
Location
⊙ - 5
⊙ - 9
⊙ - 2
⊙ - 19
⊙ - 4
⊙ - 2
⊙ - 2
⊙ - 5
⊙ - 4
1. Cut the roof side inner to wheel housing
brace and the rocker panel reinforcement
end at locations shown above. Remove the
quarter wheel housing outer panel.
mm in.
120 4.72
