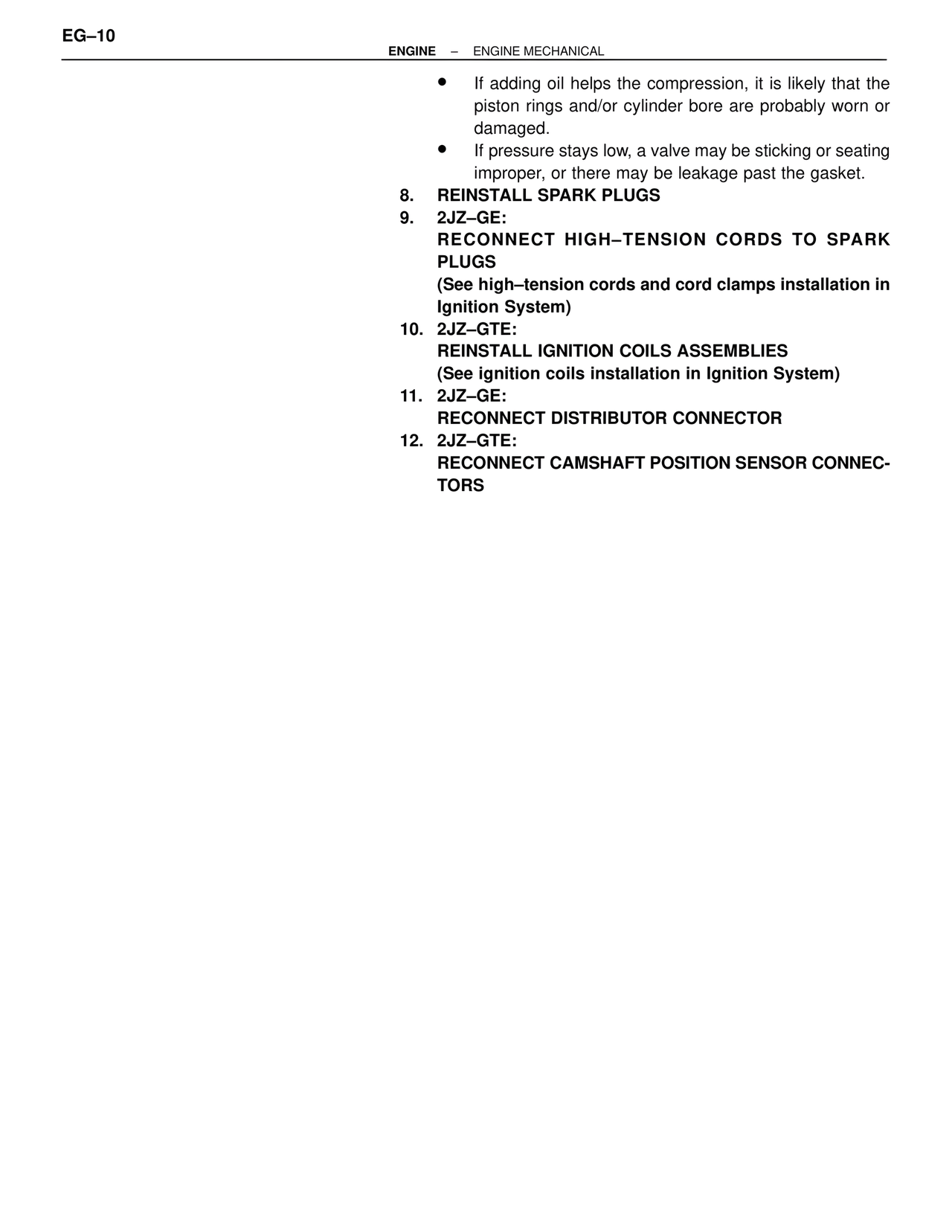

EG–10
ENGINE – ENGINE MECHANICAL
• If adding oil helps the compression, it is likely that the piston rings and/or cylinder bore are probably worn or damaged.
• If pressure stays low, a valve may be sticking or seating improper, or there may be leakage past the gasket.
8. REINSTALL SPARK PLUGS
9. 2JZ–GE:
RECONNECT HIGH–TENSION CORDS TO SPARK PLUGS
(See high–tension cords and cord clamps installation in Ignition System)
10. 2JZ–GTE:
REINSTALL IGNITION COILS ASSEMBLIES
(See ignition coils installation in Ignition System)
11. 2JZ–GE:
RECONNECT DISTRIBUTOR CONNECTOR
12. 2JZ–GTE:
RECONNECT CAMSHAFT POSITION SENSOR CONNECTORS
