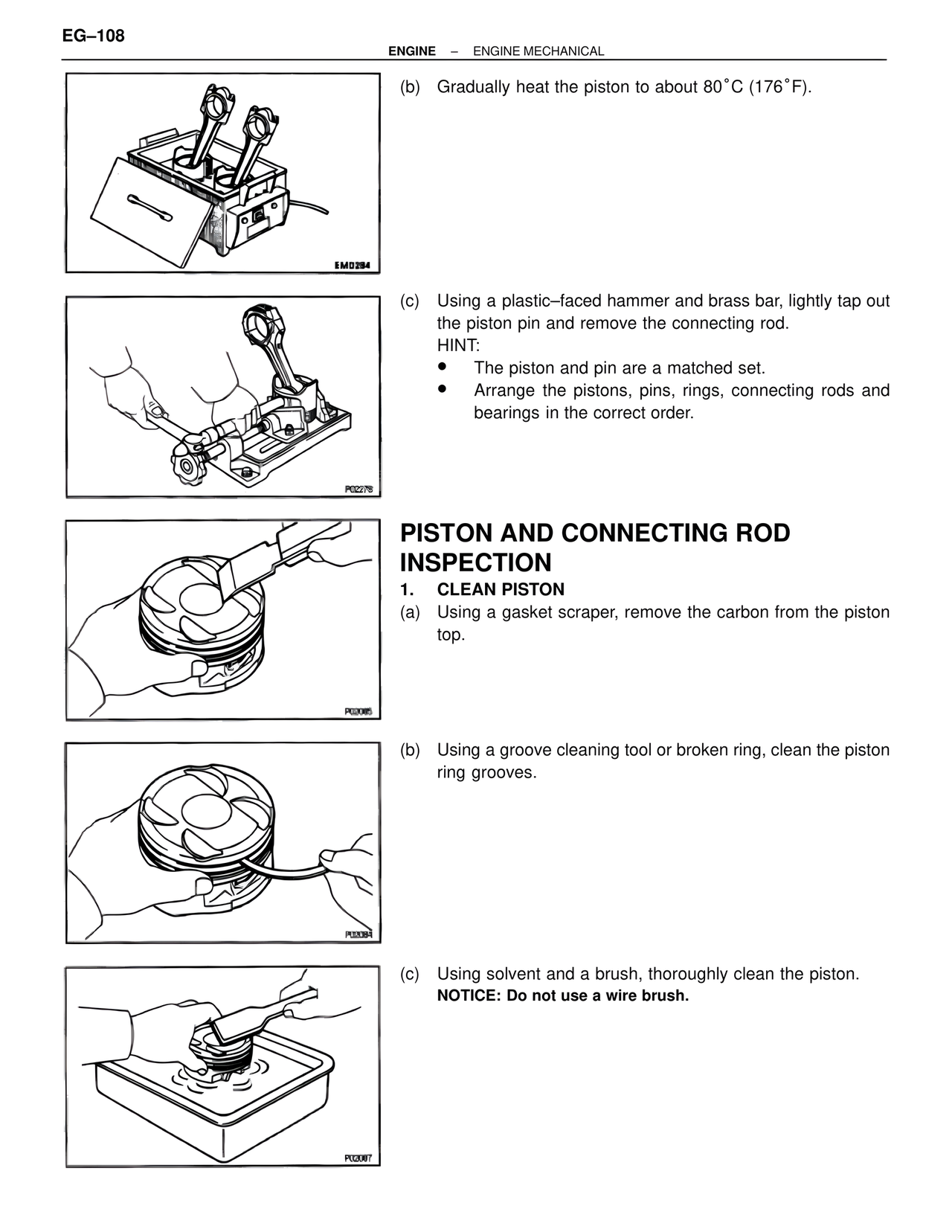

EG–108
ENGINE – ENGINE MECHANICAL
(b) Gradually heat the piston to about 80°C (176°F).
SM0294
(c) Using a plastic–faced hammer and brass bar, lightly tap out
the piston pin and remove the connecting rod.
HINT:
• The piston and pin are a matched set.
• Arrange the pistons, pins, rings, connecting rods and
bearings in the correct order.
P02279
PISTON AND CONNECTING ROD
INSPECTION
1. CLEAN PISTON
(a) Using a gasket scraper, remove the carbon from the piston
top.
P03085
(b) Using a groove cleaning tool or broken ring, clean the piston
ring grooves.
P03084
(c) Using solvent and a brush, thoroughly clean the piston.
NOTICE: Do not use a wire brush.
P03087
