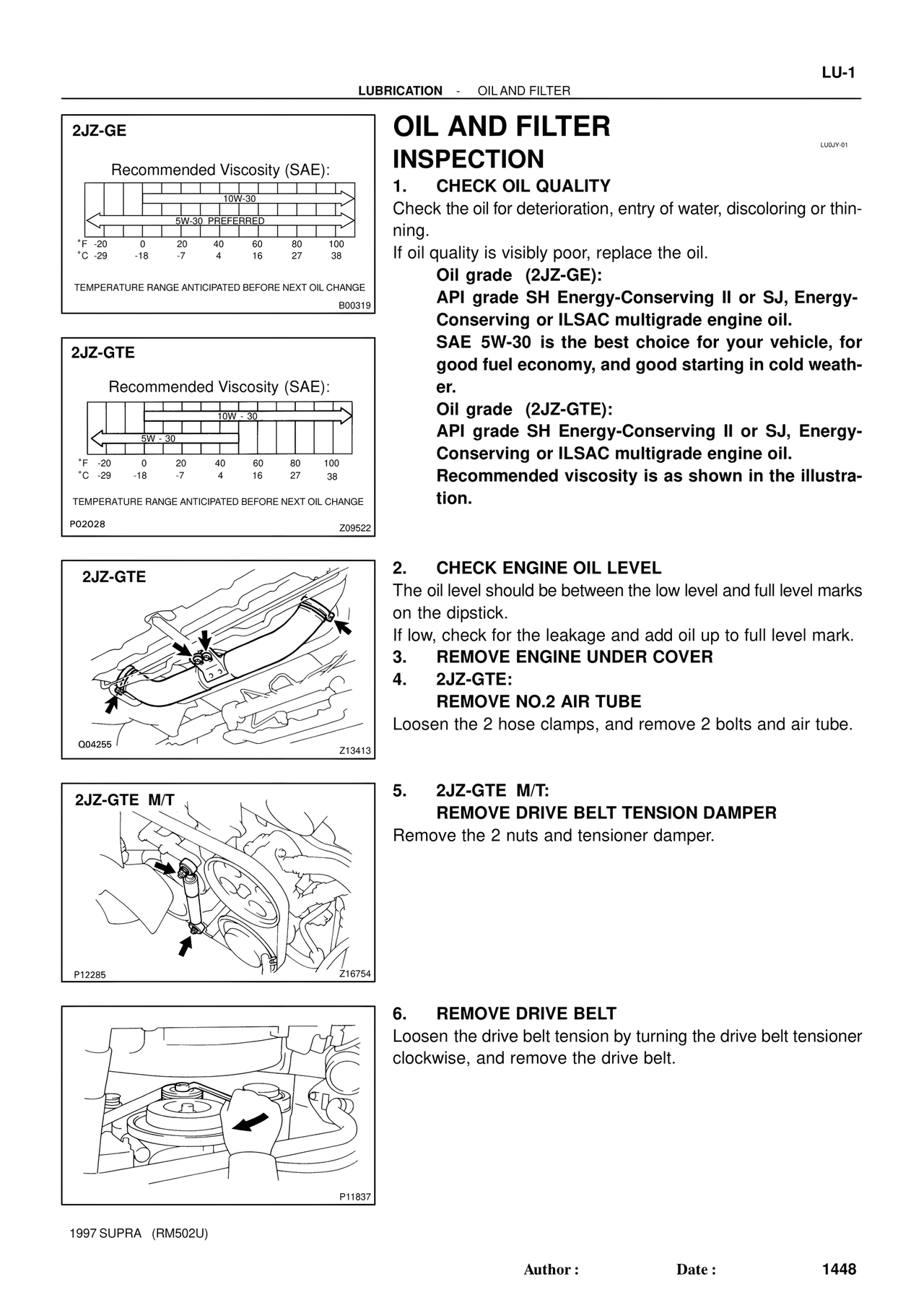

LU-1
LUBRICATION - OIL AND FILTER
2JZ-GE
Recommended Viscosity (SAE):
10W-30
5W-30 PREFERRED
°F -20 0 20 40 60 80 100
°C -29 -18 -7 4 16 27 38
TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE
B00319
2JZ-GTE
Recommended Viscosity (SAE):
10W - 30
5W - 30
°F -20 0 20 40 60 80 100
°C -29 -18 -7 4 16 27 38
TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE
P02O28 Z09522
2JZ-GTE
O04255 Z13413
2JZ-GTE M/T
P12285 Z16754
P11837
1997 SUPRA (RM502U)
OIL AND FILTER INSPECTION
LUJJY-01
1. CHECK OIL QUALITY
Check the oil for deterioration, entry of water, discoloring or thinning.
If oil quality is visibly poor, replace the oil.
Oil grade (2JZ-GE):
API grade SH Energy-Conserving II or SJ, Energy-Conserving or ILSAC multigrade engine oil.
SAE 5W-30 is the best choice for your vehicle, for good fuel economy, and good starting in cold weather.
Oil grade (2JZ-GTE):
API grade SH Energy-Conserving II or SJ, Energy-Conserving or ILSAC multigrade engine oil.
Recommended viscosity is as shown in the illustration.
2. CHECK ENGINE OIL LEVEL
The oil level should be between the low level and full level marks on the dipstick.
If low, check for the leakage and add oil up to full level mark.
3. REMOVE ENGINE UNDER COVER
4. 2JZ-GTE:
REMOVE NO.2 AIR TUBE
Loosen the 2 hose clamps, and remove 2 bolts and air tube.
5. 2JZ-GTE M/T:
REMOVE DRIVE BELT TENSION DAMPER
Remove the 2 nuts and tensioner damper.
6. REMOVE DRIVE BELT
Loosen the drive belt tension by turning the drive belt tensioner clockwise, and remove the drive belt.
