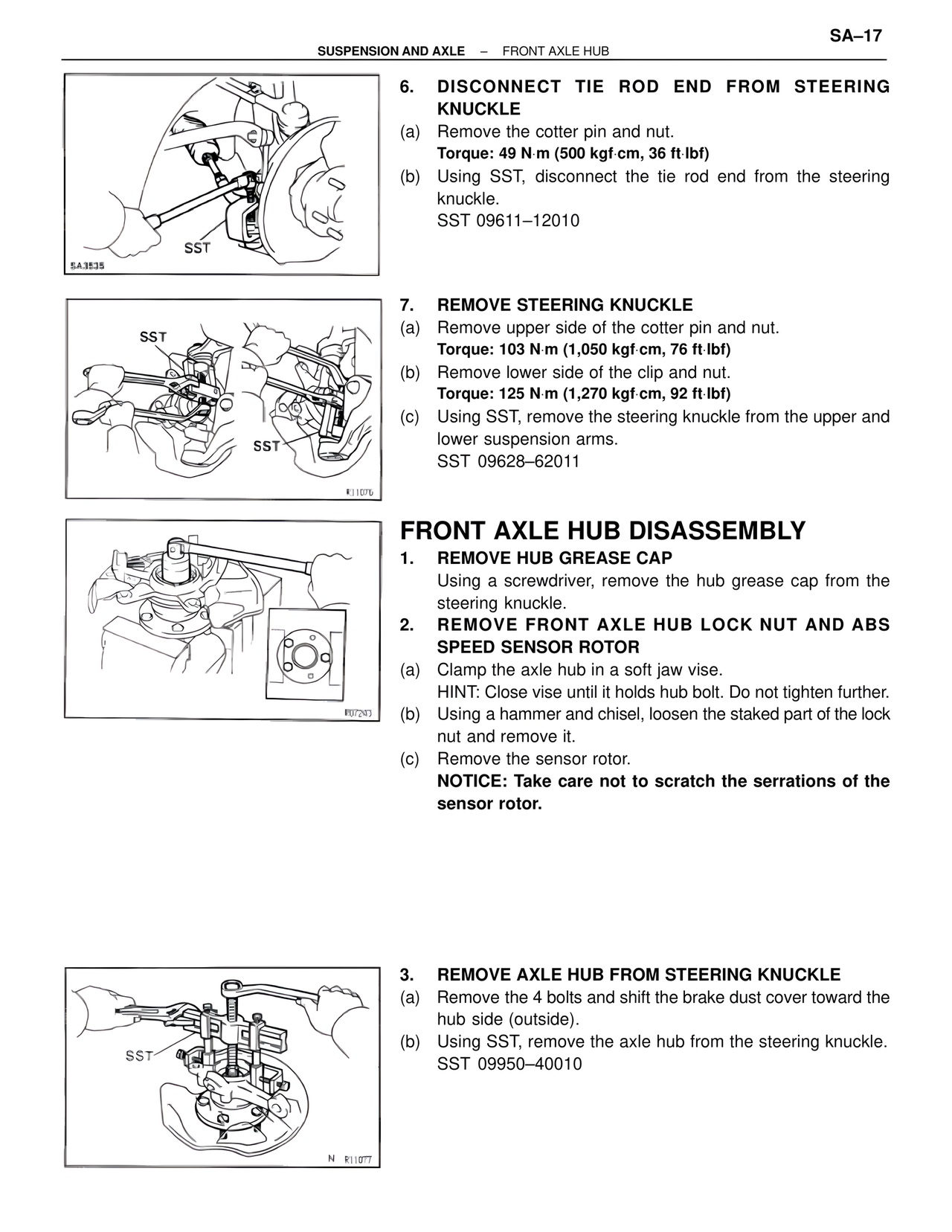

SA–17 SUSPENSION AND AXLE – FRONT AXLE HUB 6. DISCONNECT TIE ROD END FROM STEERING KNUCKLE (a) Remove the cotter pin and nut. Torque: 49 N·m (500 kgf·cm, 36 ft·lbf) (b) Using SST, disconnect the tie rod end from the steering knuckle. SST 09611–12010 SST SA3535 7. REMOVE STEERING KNUCKLE (a) Remove upper side of the cotter pin and nut. Torque: 103 N·m (1,050 kgf·cm, 76 ft·lbf) (b) Remove lower side of the clip and nut. Torque: 125 N·m (1,270 kgf·cm, 92 ft·lbf) (c) Using SST, remove the steering knuckle from the upper and lower suspension arms. SST 09628–62011 SST SST R11076 FRONT AXLE HUB DISASSEMBLY 1. REMOVE HUB GREASE CAP Using a screwdriver, remove the hub grease cap from the steering knuckle. 2. REMOVE FRONT AXLE HUB LOCK NUT AND ABS SPEED SENSOR ROTOR (a) Clamp the axle hub in a soft jaw vise. HINT: Close vise until it holds hub bolt. Do not tighten further. (b) Using a hammer and chisel, loosen the staked part of the lock nut and remove it. (c) Remove the sensor rotor. NOTICE: Take care not to scratch the serrations of the sensor rotor. R07203 3. REMOVE AXLE HUB FROM STEERING KNUCKLE (a) Remove the 4 bolts and shift the brake dust cover toward the hub side (outside). (b) Using SST, remove the axle hub from the steering knuckle. SST 09950–40010 SST N R11077
