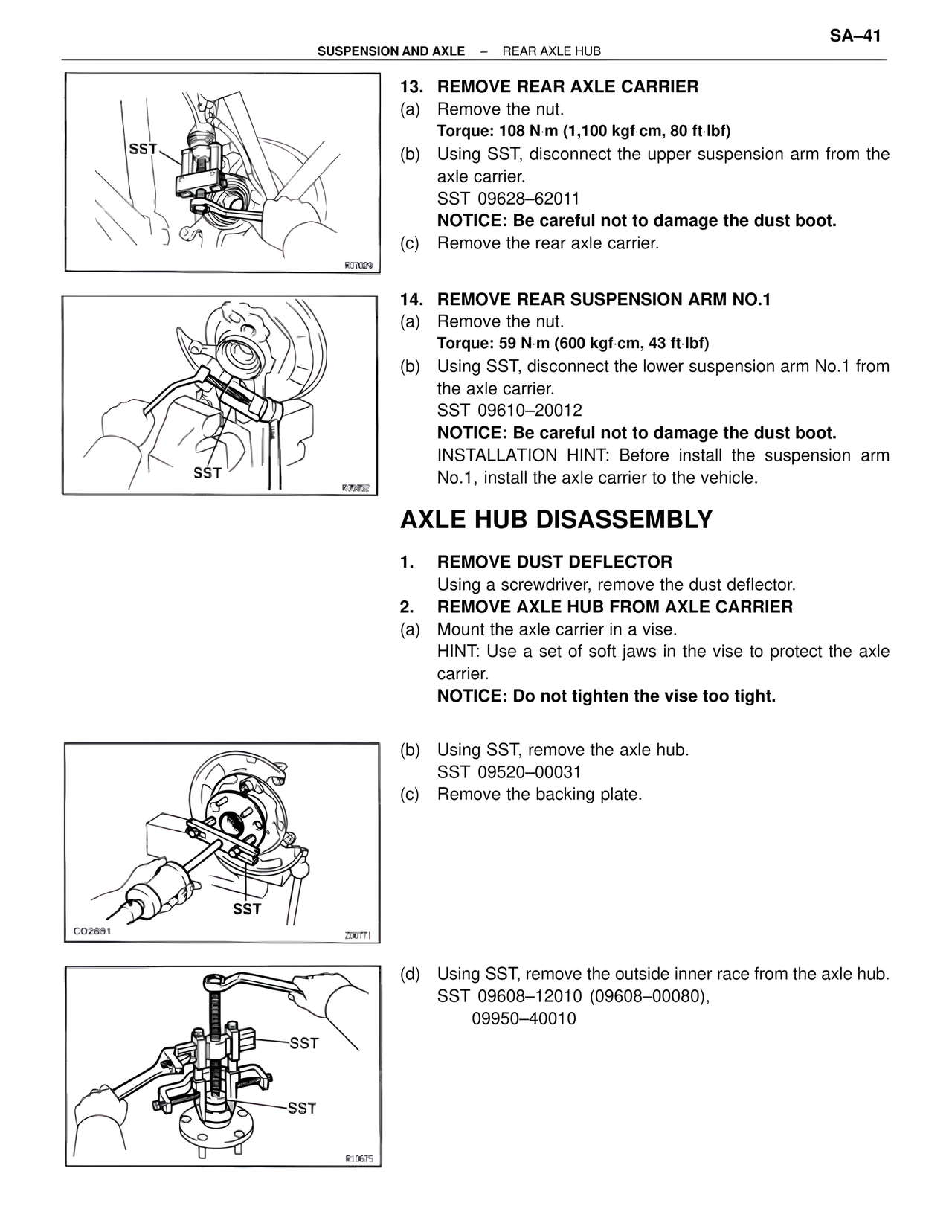

SA–41
SUSPENSION AND AXLE – REAR AXLE HUB
13. REMOVE REAR AXLE CARRIER
(a) Remove the nut.
Torque: 108 N·m (1,100 kgf·cm, 80 ft·lbf)
(b) Using SST, disconnect the upper suspension arm from the axle carrier.
SST 09628–62011
NOTICE: Be careful not to damage the dust boot.
(c) Remove the rear axle carrier.
14. REMOVE REAR SUSPENSION ARM NO.1
(a) Remove the nut.
Torque: 59 N·m (600 kgf·cm, 43 ft·lbf)
(b) Using SST, disconnect the lower suspension arm No.1 from the axle carrier.
SST 09610–20012
NOTICE: Be careful not to damage the dust boot.
INSTALLATION HINT: Before install the suspension arm No.1, install the axle carrier to the vehicle.
AXLE HUB DISASSEMBLY
1. REMOVE DUST DEFLECTOR
Using a screwdriver, remove the dust deflector.
2. REMOVE AXLE HUB FROM AXLE CARRIER
(a) Mount the axle carrier in a vise.
HINT: Use a set of soft jaws in the vise to protect the axle carrier.
NOTICE: Do not tighten the vise too tight.
(b) Using SST, remove the axle hub.
SST 09520–00031
(c) Remove the backing plate.
(d) Using SST, remove the outside inner race from the axle hub.
SST 09608–12010 (09608–00080),
09950–40010
SST
SST
SST
R07029
R05852
CO2691
Z06771
R10675
