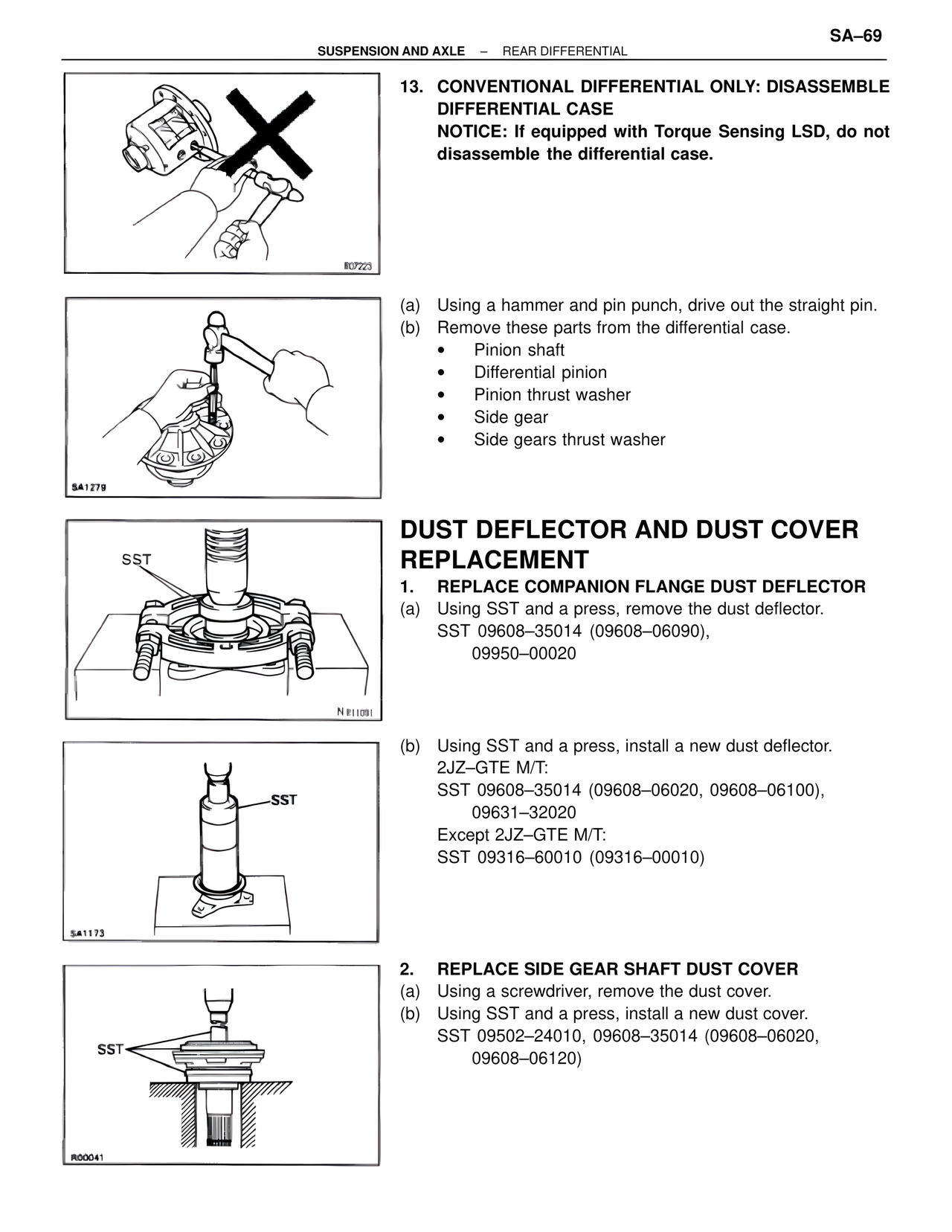

SA–69 SUSPENSION AND AXLE – REAR DIFFERENTIAL 13. CONVENTIONAL DIFFERENTIAL ONLY: DISASSEMBLE DIFFERENTIAL CASE NOTICE: If equipped with Torque Sensing LSD, do not disassemble the differential case. (a) Using a hammer and pin punch, drive out the straight pin. (b) Remove these parts from the differential case. • Pinion shaft • Differential pinion • Pinion thrust washer • Side gear • Side gears thrust washer DUST DEFLECTOR AND DUST COVER REPLACEMENT 1. REPLACE COMPANION FLANGE DUST DEFLECTOR (a) Using SST and a press, remove the dust deflector. SST 09608–35014 (09608–06090), 09950–00020 (b) Using SST and a press, install a new dust deflector. 2JZ–GTE M/T: SST 09608–35014 (09608–06020, 09608–06100), 09631–32020 Except 2JZ–GTE M/T: SST 09316–60010 (09316–00010) 2. REPLACE SIDE GEAR SHAFT DUST COVER (a) Using a screwdriver, remove the dust cover. (b) Using SST and a press, install a new dust cover. SST 09502–24010, 09608–35014 (09608–06020, 09608–06120)
