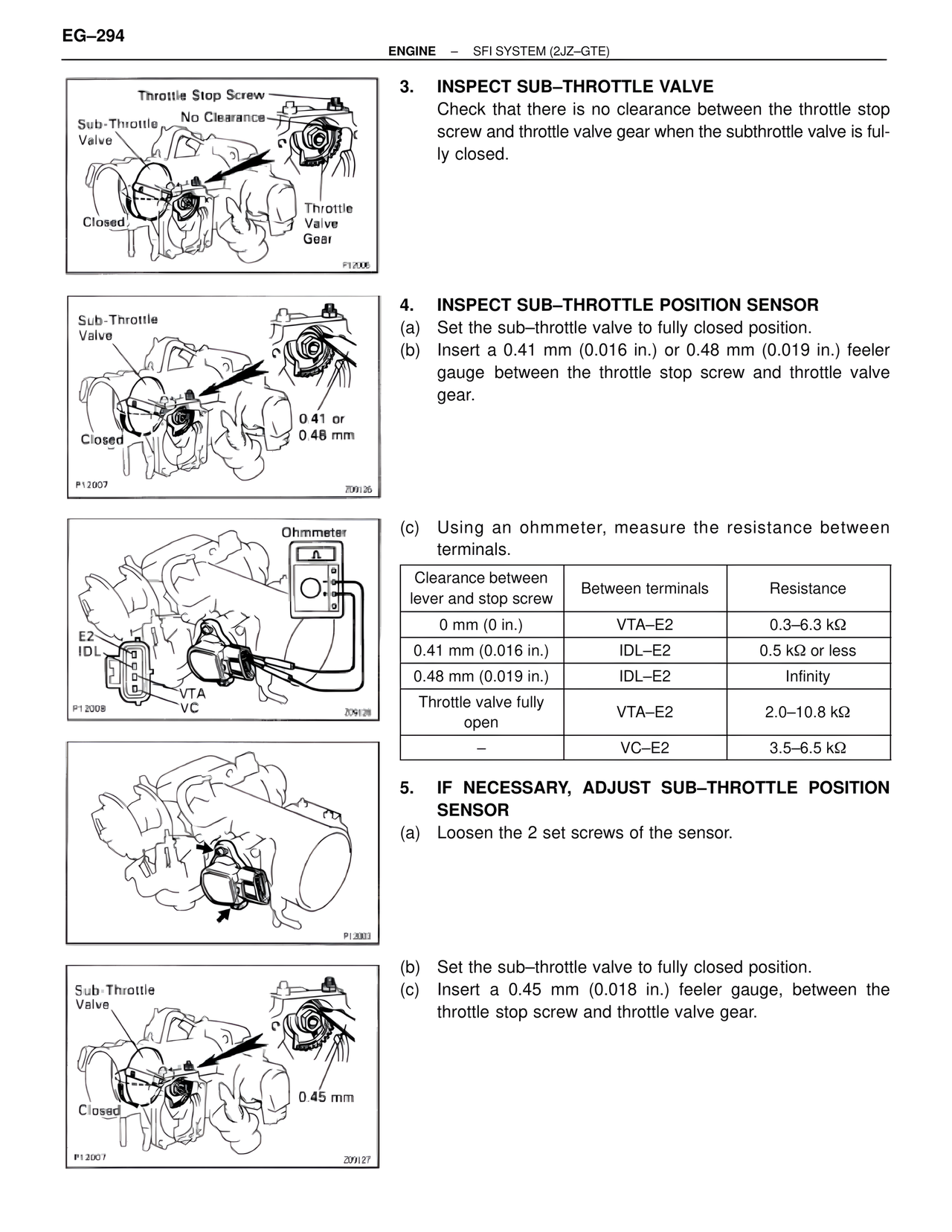

EG–294
ENGINE – SFI SYSTEM (2JZ–GTE)
Throttle Stop Screw
No Clearance
Sub-Throttle
Valve
Closed
Throttle
Valve
Gear
P12006
3. INSPECT SUB–THROTTLE VALVE
Check that there is no clearance between the throttle stop
screw and throttle valve gear when the subthrottle valve is ful-
ly closed.
Sub-Throttle
Valve
0.41 or
0.48 mm
Closed
P12007
209126
4. INSPECT SUB–THROTTLE POSITION SENSOR
(a) Set the sub–throttle valve to fully closed position.
(b) Insert a 0.41 mm (0.016 in.) or 0.48 mm (0.019 in.) feeler
gauge between the throttle stop screw and throttle valve
gear.
Ohmmeter
E2
IDL
VTA
VC
P12008
209129
(c) Using an ohmmeter, measure the resistance between
terminals.
Clearance between
lever and stop screw | Between terminals | Resistance
0 mm (0 in.) | VTA–E2 | 0.3–6.3 kΩ
0.41 mm (0.016 in.) | IDL–E2 | 0.5 kΩ or less
0.48 mm (0.019 in.) | IDL–E2 | Infinity
Throttle valve fully
open | VTA–E2 | 2.0–10.8 kΩ
– | VC–E2 | 3.5–6.5 kΩ
P12003
5. IF NECESSARY, ADJUST SUB–THROTTLE POSITION
SENSOR
(a) Loosen the 2 set screws of the sensor.
Sub-Throttle
Valve
0.45 mm
Closed
P12007
209127
(b) Set the sub–throttle valve to fully closed position.
(c) Insert a 0.45 mm (0.018 in.) feeler gauge, between the
throttle stop screw and throttle valve gear.
