B–15
TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT

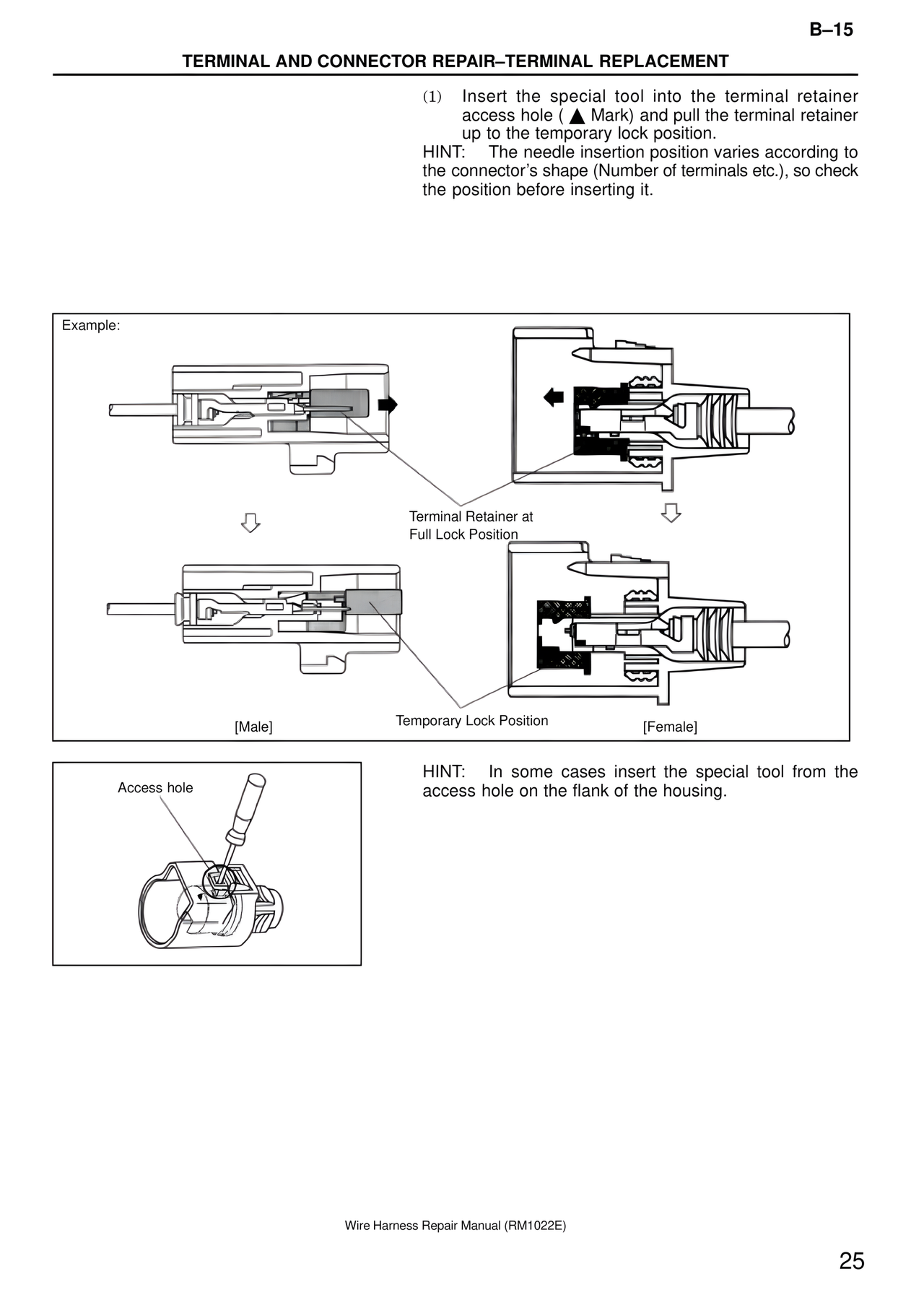

(1) Insert the special tool into the terminal retainer access hole ( ▲ Mark) and pull the terminal retainer up to the temporary lock position.
HINT: The needle insertion position varies according to the connector's shape (Number of terminals etc.), so check the position before inserting it.
Example:
Terminal Retainer at Full Lock Position
Temporary Lock Position
[Male]
[Female]
Access hole
HINT: In some cases insert the special tool from the access hole on the flank of the housing.
Wire Harness Repair Manual (RM1022E)
25
