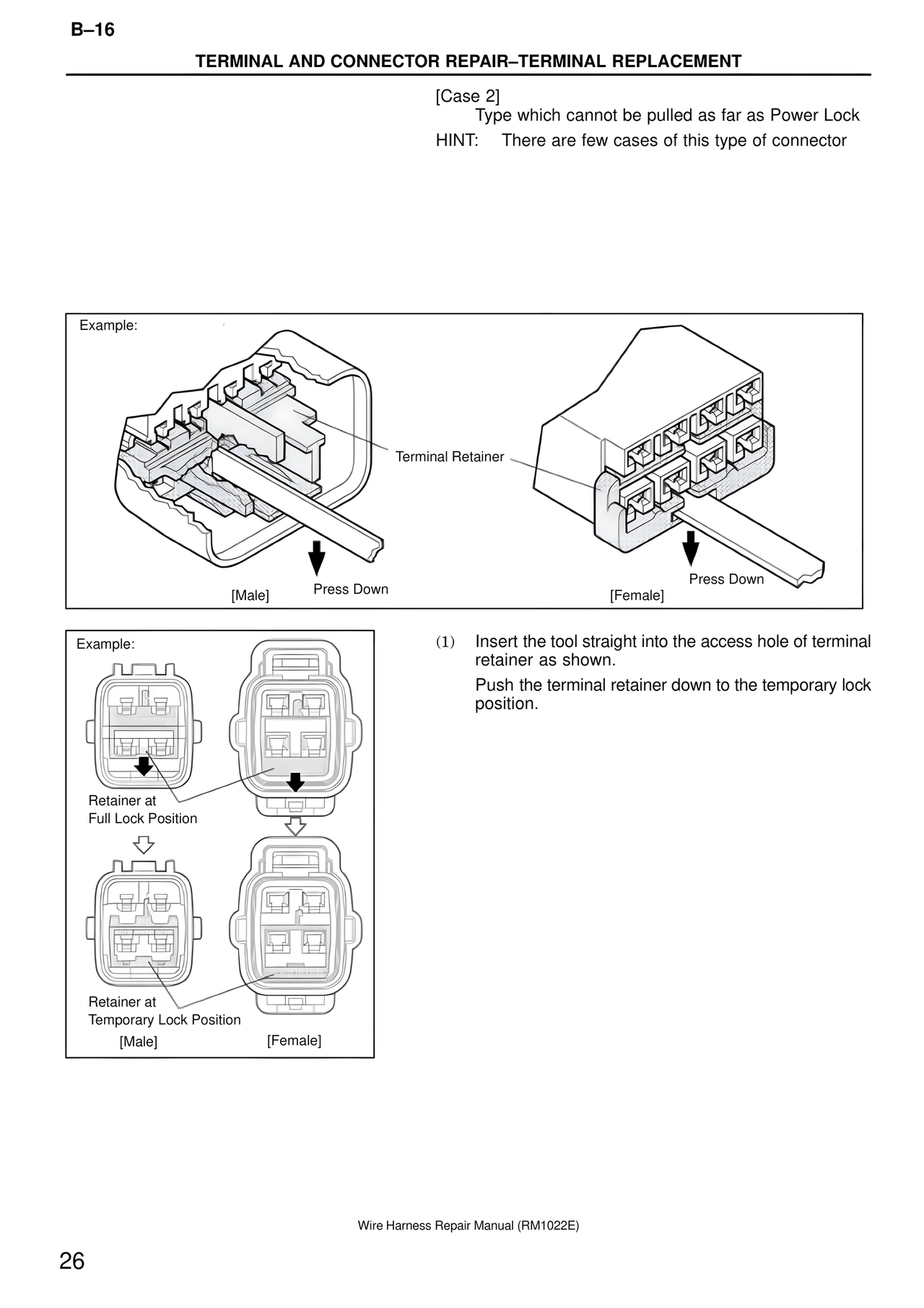

B–16
TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT
[Case 2]
Type which cannot be pulled as far as Power Lock
HINT: There are few cases of this type of connector
Example:
Terminal Retainer
[Male] Press Down
[Female] Press Down
Example:
Retainer at
Full Lock Position
Retainer at
Temporary Lock Position
[Male] [Female]
(1) Insert the tool straight into the access hole of terminal
retainer as shown.
Push the terminal retainer down to the temporary lock
position.
