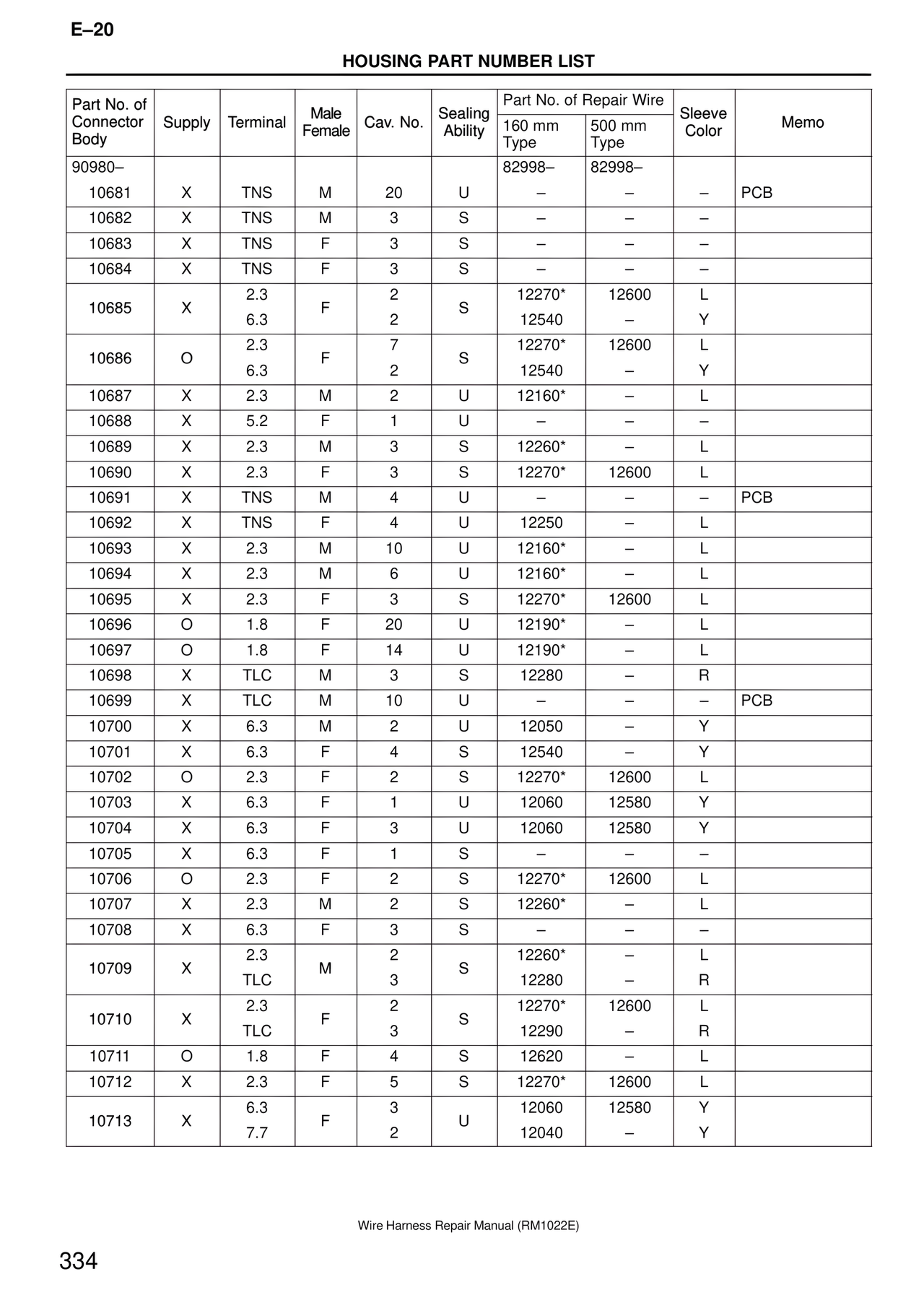

E–20 HOUSING PART NUMBER LIST Part No. of Connector Body | Supply | Terminal | Male Female | Cav. No. | Sealing Ability | Part No. of Repair Wire 160 mm Type | Part No. of Repair Wire 500 mm Type | Sleeve Color | Memo 90980– 10681 | X | TNS | M | 20 | U | 82998– | 82998– | – | PCB 10682 | X | TNS | M | 3 | S | – | – | – 10683 | X | TNS | F | 3 | S | – | – | – 10684 | X | TNS | F | 3 | S | – | – | – 10685 | X | 2.3 | F | 2 | S | 12270* | 12600 | L 10685 | X | 6.3 | F | 2 | S | 12540 | – | Y 10686 | O | 2.3 | F | 7 | S | 12270* | 12600 | L 10686 | O | 6.3 | F | 2 | S | 12540 | – | Y 10687 | X | 2.3 | M | 2 | U | 12160* | – | L 10688 | X | 5.2 | F | 1 | U | – | – | – 10689 | X | 2.3 | M | 3 | S | 12260* | – | L 10690 | X | 2.3 | F | 3 | S | 12270* | 12600 | L 10691 | X | TNS | M | 4 | U | – | – | – | PCB 10692 | X | TNS | F | 4 | U | 12250 | – | L 10693 | X | 2.3 | M | 10 | U | 12160* | – | L 10694 | X | 2.3 | M | 6 | U | 12160* | – | L 10695 | X | 2.3 | F | 3 | S | 12270* | 12600 | L 10696 | O | 1.8 | F | 20 | U | 12190* | – | L 10697 | O | 1.8 | F | 14 | U | 12190* | – | L 10698 | X | TLC | M | 3 | S | 12280 | – | R 10699 | X | TLC | M | 10 | U | – | – | – | PCB 10700 | X | 6.3 | M | 2 | U | 12050 | – | Y 10701 | X | 6.3 | F | 4 | S | 12540 | – | Y 10702 | O | 2.3 | F | 2 | S | 12270* | 12600 | L 10703 | X | 6.3 | F | 1 | U | 12060 | 12580 | Y 10704 | X | 6.3 | F | 3 | U | 12060 | 12580 | Y 10705 | X | 6.3 | F | 1 | S | – | – | – 10706 | O | 2.3 | F | 2 | S | 12270* | 12600 | L 10707 | X | 2.3 | M | 2 | S | 12260* | – | L 10708 | X | 6.3 | F | 3 | S | – | – | – 10709 | X | 2.3 | M | 2 | S | 12260* | – | L 10709 | X | TLC | M | 3 | S | 12280 | – | R 10710 | X | 2.3 | F | 2 | S | 12270* | 12600 | L 10710 | X | TLC | F | 3 | S | 12290 | – | R 10711 | O | 1.8 | F | 4 | S | 12620 | – | L 10712 | X | 2.3 | F | 5 | S | 12270* | 12600 | L 10713 | X | 6.3 | F | 3 | U | 12060 | 12580 | Y 10713 | X | 7.7 | F | 2 | U | 12040 | – | Y Wire Harness Repair Manual (RM1022E) 334
