B–42
TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT

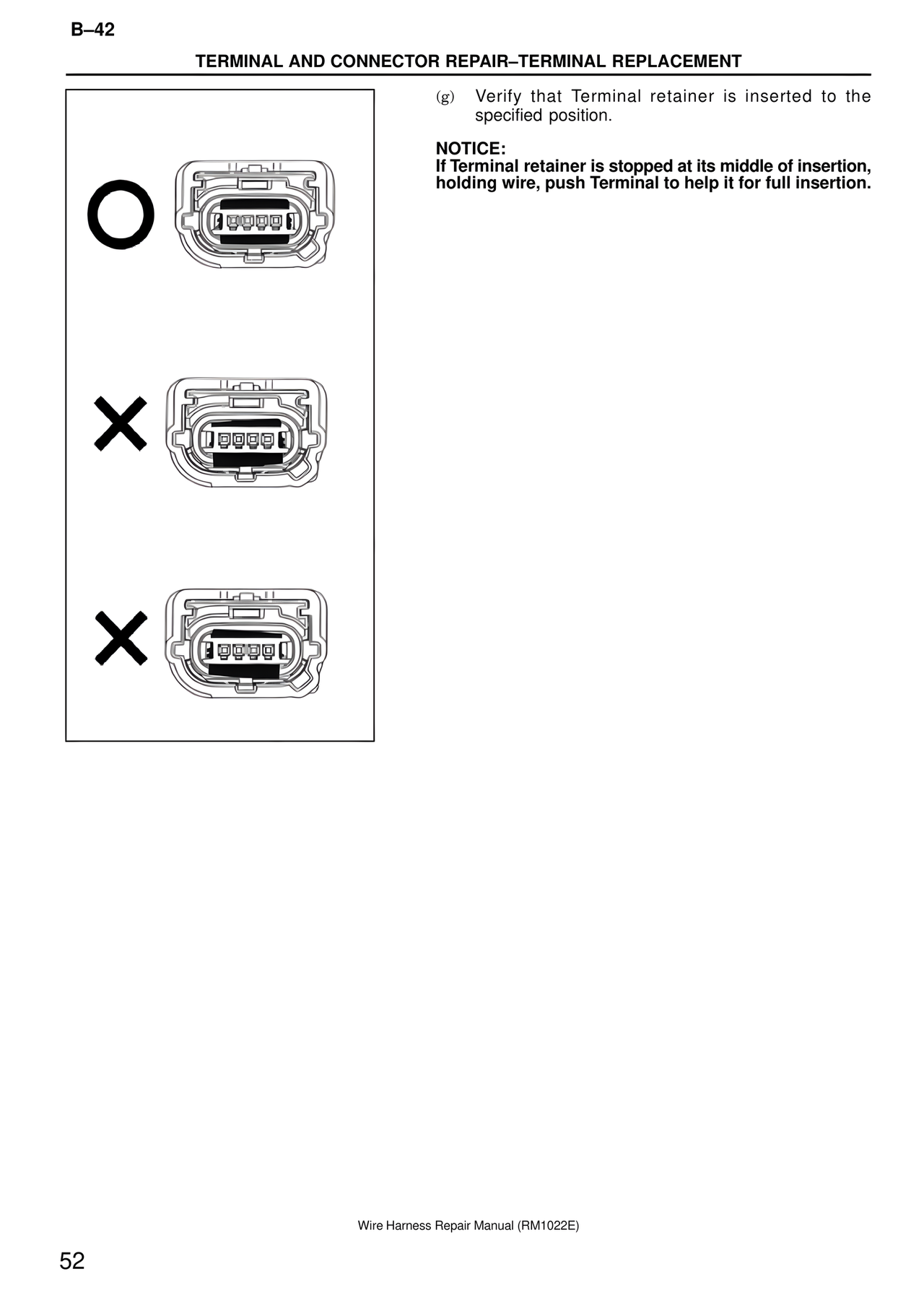

(g) Verify that Terminal retainer is inserted to the
specified position.
NOTICE:
If Terminal retainer is stopped at its middle of insertion,
holding wire, push Terminal to help it for full insertion.
Wire Harness Repair Manual (RM1022E)
52
