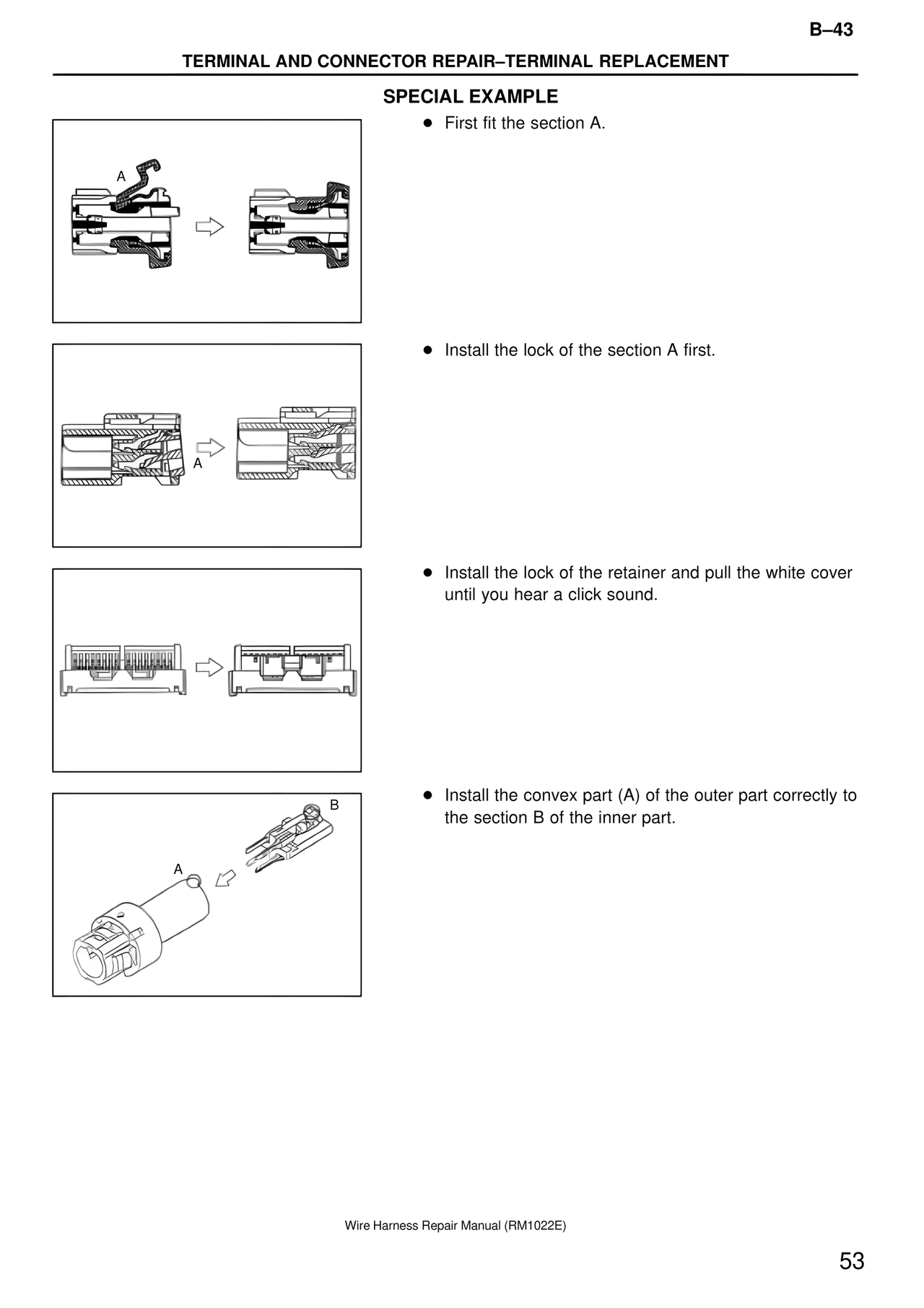

TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT
SPECIAL EXAMPLE
• First fit the section A.
A
• Install the lock of the section A first.
A
• Install the lock of the retainer and pull the white cover
until you hear a click sound.
B
A
• Install the convex part (A) of the outer part correctly to
the section B of the inner part.
